Features:
1) Output : 5W(H)/4W(M)/1W(L)
2) Frequency Range: 136.00-174.00 MHz / 400.00-520.00MHz
3) IP57 waterproof and dustproof (Not diving)
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
Specification?
-Frequency Range:VHF:136-174MHz+UHF:400-520MHz
-Channel capacity:128CH
-Output power:5W1W
-Operating Voltage:DC7.4V
-Antenna Impedance:50ohm
-Working Temperature:-20°C—+60°C
-Mode of operation:Simplex or semi-duplex
-Frequency stability:2.5ppm
-Frequency Spacing:2.5/5/6.25/10/12.5/20/25kHz
-Battery capacity:1800mAh
-Type of modulation:FM
-Emission class:16k¢F3E/11¢F3E(W/N)
-Maximum deviation:<=±5kHz/<=±2.5kHz(W/N)
-Spurious emission:
-Receiver sensitivity:0.2µW(At 12dB SINAD)
-Inter modulation:60dB
-Audio output:1W
-Spurious Radiation:>=65dB
-Consumption in standby:380mA
-Consumption in transmission:

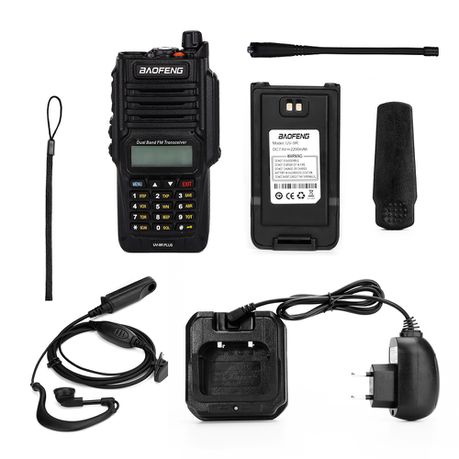

What's in the box
1 x UV-9R
1 x 7.4V 1800mah Li-ion Battery Pack
1 x Antenna 136-174/400-520Mhz
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA o
