TP-LINK WR902AC - AC750 Wireless Travel Router

AC750 Wireless Travel Router
TL-WR902AC

Travel-Sized Design – Conveniently small and light to pack and take on the road, creating Wi-Fi network via Ethernet or WISP
Dual Band AC750 Wi-Fi – Strong, fast connection for HD streaming on all your devices
One Switch for Multiple Modes – Perfect for Wi-Fi at home, your hotel room or on the road
Flexible Power – Micro USB port to an adapter, portable charger or laptop
Versatile USB – For file sharing or providing power supply to mobile devices

Fast Wi-Fi Travels with You!

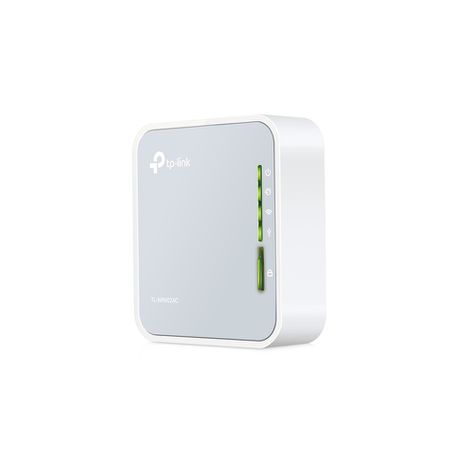

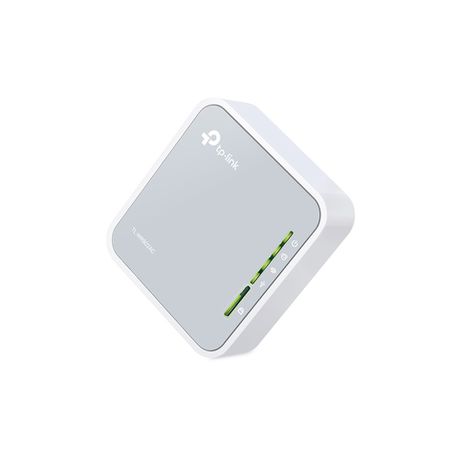

AC750 Wireless Travel Router
TL-WR902AC

Portable and compact
With the travel-sized and compact design, TL-WR902AC is small enough to put into your pocket and make sure you can have internet access wherever you go. The mini USB power supply and built-in adapter make it perfect for travelers, students, and anyone else living life on the go.

Excellent Wireless Speed with 11AC Wi-Fi
Coming with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds, TL-WR902AC delivers a combined wireless data transfer rate of up to 733Mbps, making it an ideal choice for various applications simultaneously.

Creates Wi-Fi Wherever You Want and Anyway You Desire!
To meet the wireless needs of almost any situation you might encounter, the TL-WR902AC features Router, Hotspot, Range Extender, Client, and Access Point Modes.

During Travel
1. Router Mode
Connect to a hotel's Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices.

1. Hotspot Mode
   Connect to an outdoor WISP Access Point, enjoy a private Wi-Fi hotspot for your devices in public areas.

At Home

1. Range Extender Mode
   Extend your existing Wi-Fi network to maximize coverage and eliminate dead zones.

InternetRouterTL-WR902ACDesktopTabletsPhones
4. Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.

InternetRouterTL-WR902ACDesktop or Game Console
5. Access Point Mode
Create a wireless network for Wi-Fi enabled devices.

Multifunctional USB Port for File Sharing and Charging
A multifunctional USB port allows you to share files and media through your internet browser with different computers. Also, the USB port can provide power supply (up to 5V/2A) to mobile devices like smart phones or tablets, making it easy to charge on the go.

Specifications
HARDWARE FEATURES

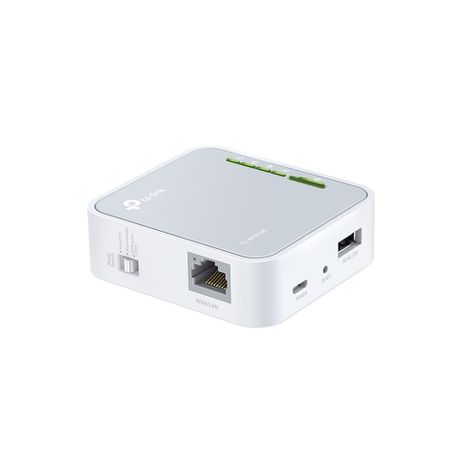

Interface :
1 x 10/100Mbps WAN/LAN Port
1 x Reset Button
1 x USB 2.0 Port
1 x Mode Switch
1 x WPS Button
External Power Supply : 5V/2A
Dimensions ( W x D x H ) : 2.912.640.87 in. (746722mm)
Antenna Type : On-Board

Wireless Features
Wireless Standards:
IEEE 802.11ac/n/a 5GHz
IEEE 802.11b/g/n 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 5GHz: Up to 433Mbps(Only with 11AC Wireless Adapter); Up to 150Mbps with 11N Wireless Adapter, 2.4GHz: Up to 300Mbps
Reception Sensitivity :
11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:
-61.5dBm
2.4GHz:
11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
11n HT40 MCS7: -71dBm
Transmit Power :
CE:
<20dBm(2.4GHz)
<23dBm(5GHz)
Wireless Functions : Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security : 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption

SOFTWARE FEATURES
Quality of Service : WMM, Bandwidth Control
Management :
Access Control
Local Management
Remote Management
WAN Connection Type : Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP : Server, Client, DHCP Client List,Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, Comexe, NO-IP
VPN Pass-Through : PPTP, L2TP, IPSec
Access Control : arental Control, Local Management Control, Host List,Access Schedule, Rule Management
Firewall Security : DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols : Supports IPv4
Guest Network :
2.4GHz guest network × 1
5GHz guest network × 1

Others
Certification: CE, FCC, RoHS
System Requirements : Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment :
Operating Temperature: 0?~40 ? (32 ?~104?)
Storage Temperature: -40?~70 ? (-40 ?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box
1 x AC750 Wireless Travel Router TL-WR902AC
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Gui
