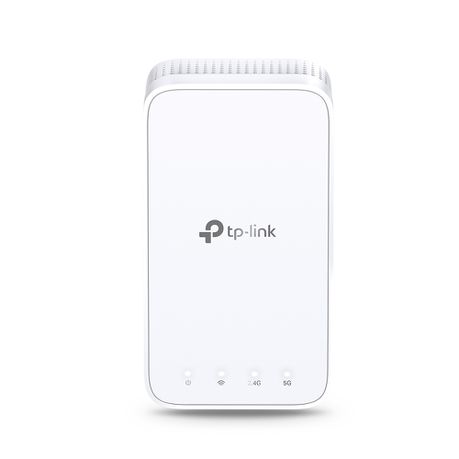

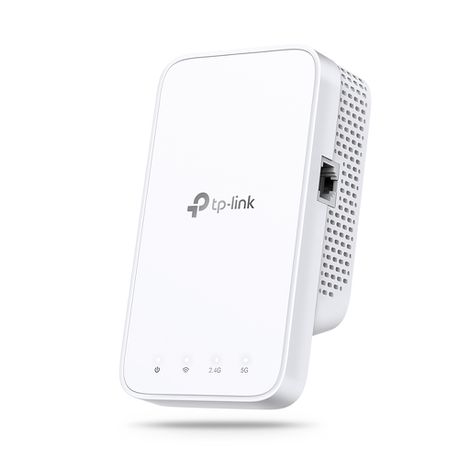

TP-Link RE230 AC750 Dual-Band Wireless Range Extender

RE230
AC750 Wi-Fi Range Extender

Key Features
Boost Wi-Fi Coverage - Eliminate Wi-Fi dead zones with powerful Wi-Fi.
AC750 Dual-Band Wi-Fi - Simultaneous 300 Mbps on 2.4GHz + 433 Mbps on 5GHz
Fast Ethernet port - Act as a wireless adapter to connect a wired device to your network
Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point
OneMesh Compatible

Eliminate dead spots from your home while upgrading your 802.11ac Wi-Fi to a wireless mesh system with the RE230 AC750 Dual-Band Wireless Range Extender from TP-Link. Equipped with two powerful internal antennas, this dual-band range extender works with your router to expand your Wi-Fi coverage and transfer data at up to 300 Mb/s on the 2.4 GHz frequency and 433 Mb/s over the 5 GHz signal, delivering smooth HD video streaming, online gaming experiences, and more. It works with TP-Link OneMesh-compatible devices, which includes many traditional routers, to create a mesh network system. With a mesh system, your wireless network operates using a single network name (SSID) and login, allowing you to seamlessly walk between rooms without having to switch networks or lose speed.

With its plug-and-play design, you can pair the range extender with your router by pressing the WPS buttons on both devices. Then, plug the RE230 into a wall outlet where you need addition Wi-Fi coverage. The smart signal indicator lets you know whether it's too far from the router. The wireless signal is secured with 64/128-bit WEP, WPA-PSK, WPA2-PSK encryption and you can manage your Wi-Fi network and its connected devices using the TP-Link Tether mobile app. The RE30 can also be used as an access point by connecting wired devices such as computers, smart TVs, video game consoles, and more to the 10/100 Mb/s Ethernet port.

Why Do You Need OneMesh Range Extender?
Can’t get Wi-Fi in your bedroom? - Add a Wi-Fi Range Extender
Lose connection while alking around the house? - OneMesh with Smart Roaming
Network buffering all the time? - AC1200 Dual Band Speed
Network setup too complicated? - Easy Setup with Only Two Steps

Keep the Whole Home Connected
RE230 wirelessly connects to your Wi-Fi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz, put strong, fast Wi-Fi in every room and say goodbye to dead zones.

TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching around for a stable connection.

Smart Roaming - Uninterrupted streaming when moving around your home Extender
One Wi-Fi Name - No more switching Wi-Fi network names
Easy Creation - OneMesh Router + OneMesh Range Extender
Unified Management - Manage the whole unified network all in one Tether app

High-Speed Dual Band Wi-Fi without Bandwidth Drop
Faster AC750 Dual Band Wi-Fi - The RE230 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 433 Mbps dual bands.
Keeps Itself Fast - Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode - Use both Wi-Fi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.

Secure One-Touch Connection for Easy Setup
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE230 to connect to the network.
Step 2: Once connected, place RE230 to the best location—without reconfiguration.

Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your Wi-Fi.

Feature-Rich App for Control in Your Hands
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

Specifications
Hardware Features
Plug Type : EU, UK, US, JP
Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface : 1 x 10/100M Ethernet Port (RJ45)

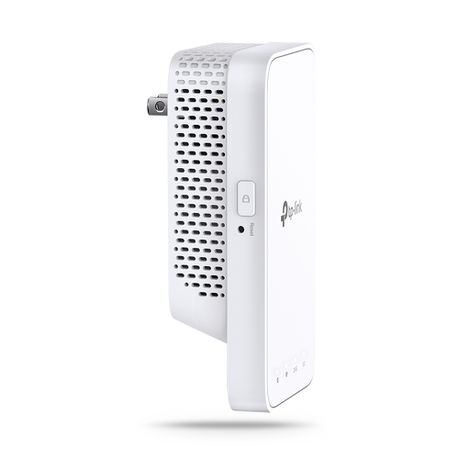

Button : WPS Button, Reset Button
Dimensions ( W x D x H ) : 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm)

WIRELESS FEATURES
Frequency : 2.4GHz & 5GHz(11ac)
Signal Rate : 5GHz: Up to 433Mbps
2.4GHz: Up to 300Mpbs

Reception Sensitivity
5GHz?
11a 6Mbps:-91dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -63dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER

Wireless Modes : Range Extender/Access Point
Wireless Functions : Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security : 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power : <17dBm(2.4GHz)
<17dBm(5GHz)

OTHERS
Certification : CE, FCC, RoHS
Box Dimensions (W X D X H) : 6.2 x 4.0 x 3.5 in. (156.5 x 101.5 x 89 mm)
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.
Environment : Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box
1 x AC750 Wi-Fi Range Extender RE230
1 x Quick Installation Guide
