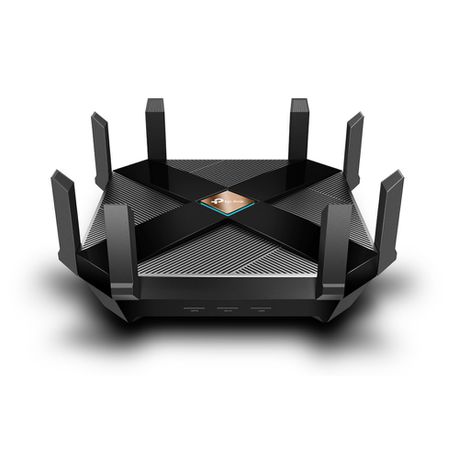

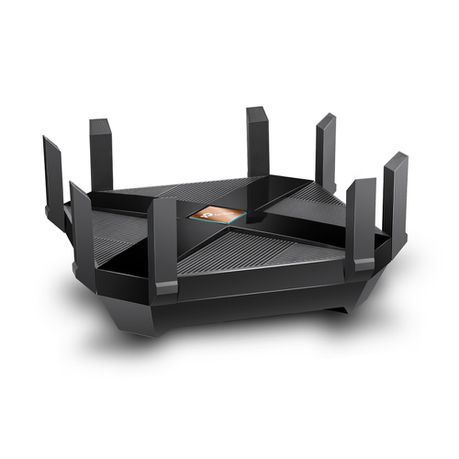

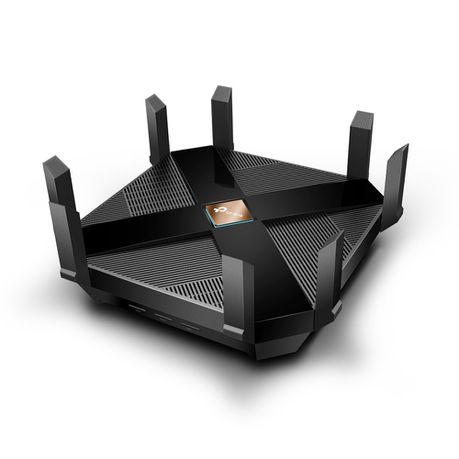

TP-Link AX6000 Next Gen WIFI Router

Tp-Link AX6000 Next Gen WIFI Router, 1,8Ghz Quad Core CPU, 4804Mbps at 5Ghz and 1148Mbps at 2.4Ghz

Blazing Speed - AX6000 Dual-Band Wi-Fi speed boosted by 1024QAM deliver astonishing wireless speed up to 5952 Mbps: 4804 Mbps (5 GHz) and 1148 Mbps (2.4 GHz)
Ultra Connectivity - 1 × 2.5 Gbps WAN port, 8 × Gigabit LAN ports, and 2 × USB 3.0 in Type A and Type C
Highly Efficient - OFDMA increases average throughput by 4× in high-density scenarios, compared with an 802.11ac standard router. Downlink and uplink MU-MIMO are both supported.
Powerful Processing - 1.8 GHz Quad-Core CPU and 2 coprocessors eradicate latency and deliver stable performance
Intelligent Connection - Band Steering directs clients to the less congested band and Airtime Fairness optimizes the time usage
Security System Built-In - TP-Link HomeCareTM provides the whole network with advanced antimalware service powered by Trend MicroTM, delivering Antivirus, Parental Controls and QoS
Easy Setup - Link to your router via Bluetooth and set it up in minutes with the powerful Tether app

Faster. Broader. Higher Capacity.
802.11ax Next-Gen Wi-Fi Router - Archer AX6000

What is 802.11ax Wi-Fi
Fast. High Efficiency.
Gaming, 4K/8K streaming, smart home devices, and AR/VR all compete for network resources, creating lag and crowding your network. To solve this problem, 802.11ax (also known as Wi-Fi 6), a next-gen high-efficiency Wi-Fi standard, was created. Now, you can simultaneously connect more devices and enjoy the optimum speed for each of them.

Next-Gen Wi-Fi — 802.11ax
The Archer AX6000 is TP-Link’s first router with next-generation 802.11ax Wi-Fi technology. Take your Wi-Fi to the next level while being backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards.
4x Higher Performance
The new Downlink and Uplink MU-MIMO and OFDMA achieve a performance boost 4× that of 802.11ac
4x Larger Capacity
OFDMA greatly increases the number of connected devices by assigning channels to more devices
3x Faster Speed
1024 QAM and Long OFDM Symbol boost overall speeds up to an incredible 6000 Mbps
Boosted Coverage
BSS Color technology ensures smooth and stable connections by eliminating signal interference, while beamforming and Rangeboost deliver stronger and far-reaching network.

Blazing Fast Speed
New technologies that come with 802.11ax, such as 1024QAM and Long OFDM Symbol, allow the router to provide industry-leading speeds of up to 1148 Mbps on a 2.4GHz band and 4804 Mbps on a 5GHz band. With the maximum bandwidth increased to 160MHz, you enjoy blazing-fast speeds without any lag.

Connect Numerous Devices
Non-Stop Entertainment on All Your Devices
With OFDMA and MU-MIMO technology, Archer AX6000 provides up to 4× higher capacity and throughput compared to standard AC routers in dense usage environments, greatly increasing the number of connected devices.

Far-Reaching Wi-Fi Coverage
8 high-gain external antennas deliver a strong Wi-Fi signal throughout your home. BSS Color technology ensure smooth and stable connections by eliminate signal interference probably from your neighbors, while beamforming and Rangeboost deliver stronger and far-reaching network.

Lightning-Fast Wired Connections
The Archer AX6000 provides a 2.5Gbps WAN port to make fully use of the over 1Gbps internet access, boost the whole internet throughput. one Type C and one Type A USB 3.0 ports and eight Gigabit Ethernet ports also help to transfer data at blistering speeds for peak performance.

Smarter. Faster. Safer.
Top-Notch Processing Architecture
An extremely powerful 1.8GHz 64-bit quad-core processor with two distinct co-processors and 8Gb of RAM powers through multiple complex tasks and demanding applications with ease. Its processing power allows the router to support multiple high-demand applications at the same time.

HomeCare
TP-Link HomeCare ensures every device on your network remains protected, with a threat database updated live by Trend Micro™. Use the powerful parental controls to limit time spent online and block inappropriate content according to unique profiles created for each family member.
Robust Parental Controls
Block inappropriate content and restrict time spent online
Built-In Antivirus
Protect all connected devices in your home from online threats
Quality of Service
Prioritize devices and applications for faster performance when needed

Setup Just Got a Lot Easier
To set up the Archer AX6000 via Bluetooth, simply download the Tether app,follow the on-screen instructions, and get your network up and running in minutes.
Connect Archer AX6000 to your cable modem and turn on both devices
Download and launch the Tether app
Link to your router via Bluetooth and follow the in-app instructions to complete the network setup

Works with Alexa and IFTTT
Add new devices to your network, prioritize devices and activities, share the guest Wi-Fi password and more with Amazon Alexa and your voice.
With IFTTT, you can trigger actions when devices are connecting, disconnecting, or being added to your network. You can even choose to prioritize certain devices every time you use them.

Specifications
Hardware Features

Memory : 1GB RAM and 128MB Flash
Interface : 8 x 1G/100M/10M LAN Ports,
1 x 2.5G/2G/1G/100M WAN Port
1 x USB-A 3.0 Port + 1 USB-C 3.0 Port
Button : Wi-Fi On/Off Button, Reset Button, WPS Button, Power On/Off Button, LED on/off Button
External Power Supply : 12V/4A
Dimensions ( W x D x H ) : 10.3×10.3×2.4in (261.2×261.2×60.2mm)
Antenna : 8 High-Performance External Antennas

Wireless Features
Wireless Standards : IEEE 802.11ax/ac/n/a 5GHz + IEEE 802.11ax/n/b/g 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 5GHz: 4804Mbps(802.11ax), 2.4GHz: 1148Mbps(802.11ax) compatible with 802.11a/b/g/n/ac Wi-Fi standards
Reception Sensitivity :
5GHz:
11a 6Mbps?-97dBm, 11a 54Mbps:-79dBm
11ac VHT20MCS0:-96dBm, 11ac VHT20MCS11:-66dBm
11ac VHT40MCS0:-94dBm, 11ac VHT40MCS11:-63dBm
11ac VHT80MCS0:-91dBm, 11ac VHT80MCS11:-60dBm
11ac VHT160MCS0:-88dBm, 11ac VHT160MCS11:-55dBm
11ax HE20MCS0:-95dBm, 11ax HE20MCS11:-63dBm
11ax HE40MCS0:-92dBm, 11ax HE40MCS11:-60dBm
11ax HE80MCS0:-89dBm, 11ax HE80MCS11:-58dBm
11ax HE160MCS0:-85dBm, 11ax HE160MCS11:-55dBm
2.4GHz?
11g 6Mbps?-97dBm, 11a 54Mbps:-79dBm
11n HT20MCS0:-97dBm, 11n HT20MCS7:-78dBm
11n HT40MCS0:-95dBm, 11n HT40MCS7:-75dBm
11ac VHT20MCS0:-96dBm, 11ac VHT20MCS11:-67dBm
11ac VHT40MCS0:-94dBm, 11ac VHT40MCS11:-64dBm
11ax HE20MCS0:-96dBm, 11ax HE20MCS11:-64dBm
11ax HE40MCS0:-93dBm, 11ax HE40MCS11:-61dBm
Wireless Functions : Enable/Disable Wireless Radio, Guest network, DFS, MU-MIMIO, OFDMA
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power :
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)
FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
Guest Network : 2.4GHz guest network x 1, 5GHz guest network x 1

Software Features
Quality of Service : Advanced Qos powered by TrendMicro
WAN Type : Dynamic IP/Static IP/PPPoE/ PPTP(Dual Access)/L2TP(Dual Access)
Management : Advanced Parental control powered by TrendMicro, Local Management, Remote Management
DHCP : Server, DHCP Client List, Address Reservation
Port Forwarding : Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS : DynDns, NO-IP, TP-Link
VPN Server : PPTP, OpenVPN

Others
Certification : FCC, CE, RoHS
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
Environment ::
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box

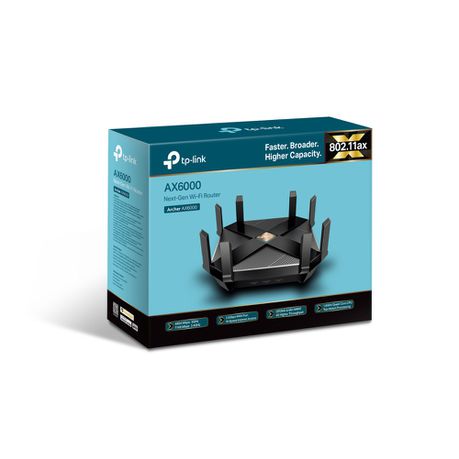

Wireless Router Archer AX6000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
