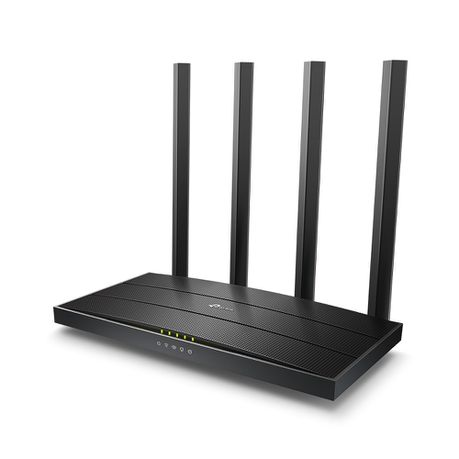

TP-Link Archer C80 AC1900 Wireless MU-MIMO Wi-Fi Dual Band Router

The Archer C80 comes with Wireless AC1900 and it can support a maximum WiFi speed up to 1300Mbps on 5 GHz channel and 600Mbps on 2.4 GHz channel. It supports Wireless AC MU-MIMO and Beamforming feature for a better WiFi performance.
MU-MIMO technology will let it to have better performance when having more devices connected to your wireless router. It allows the router to achieve Multi User, Multiple Input Multiple Output
TP-Link also added beamforming function to the Archer C80. This will provide a stronger WiFi signal for your device by carefully adjusting the antenna power to steer the signal towards your WiFi clients’ simultaneous connection which will result in better speed.

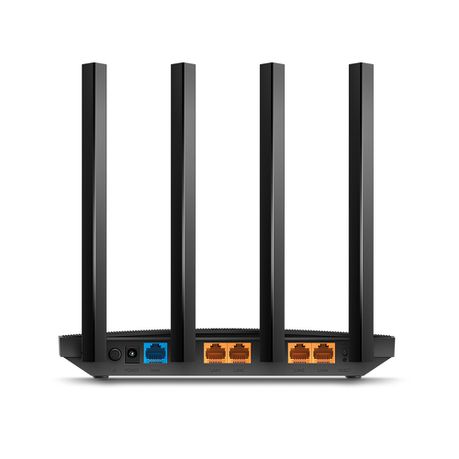

It has 4 Gigabit Ethernet LAN ports and a single Gigabit Ethernet WAN port that can support up to 1Gbps on this port. This is a really important factor to consider when shopping for an affordable router. Some routers can only support up to 100Mbps.

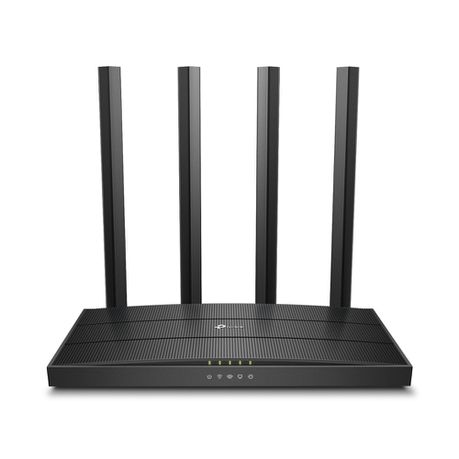

There are 4 non-removable high gain external antennas. With the 2 holes under the router it is possible to wall mount or ceiling mount this wireless router.

FEATURES:
• 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.

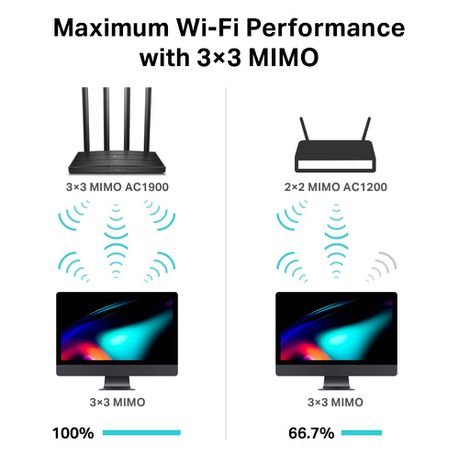

• Maximum Wi-Fi Performance with Three Streams, 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients. With 3×3 MIMO, Archer C80 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with C80 to perform at max with much higher efficiency than 2×2 MIMO routers.
• Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.
• MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.
• Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
• Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.
• Incredible 802.11ac Wave2 Home Wi-Fi: Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming at a maximum of 1300mbs or 4K/8K UHD streaming on the 5 GHz band at 600mbs —all lag-free.
• Broader Coverage throughout Your Home: Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.
• Connect More Devices Simultaneously: Archer C80 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.
• Increased Efficiency in Wi-Fi Distribution: Smart Connect helps your router automatically switch each device's connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.
• Full Gigabit Ports: Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.
• Personalize Your Home Network: Archer C80 provides a wealth of advanced tools for personalized management.
• Parental Controls: Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.
• Guest Network: Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.
• Easy Setup at Your Fingertips: Set up Archer C80 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
• IPv6 Supported: Future-proof your network with IPv6 (Internet Protocol Version 6) support.
• IPTV: Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN.
• Quality of Service: Prioritizes devices to give faster performance where you need it
• Cloud Service: Receive software updates and control your router remotely through your cloud account

SPECIFICATIONS:

WIRELESS
Standards: Wi-Fi 5
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds: AC1900
• 5 GHz: 1300 Mbps (802.11ac)
• 2.4 GHz: 600 Mbps (802.11n)
WiFi Range: 3 Bedroom Houses
• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
• Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
• Improves transmission power to strengthen signal coverage
WiFi Capacity: Medium
• Dual-Band
• Allocate devices to different bands for optimal performance
• 3×3 MU-MIMO
• Simultaneously communicates with multiple MU-MIMO clients
• Airtime Fairness
• Improves network efficiency by limiting excessive occupation
Working Modes
• Router Mode
• Access Point Mode

HARDWARE FEATURES
Interface
• 4 10/100/1000Mbps LAN Ports
• 1 10/100/1000Mbps WAN Port
Button
• Reset Button
• WPS/Wi-Fi Button
• Power On/off Button
External Power Supply
• US version 12V/1.5A
• EU version 12V/1A
Antenna: 4 Fixed Omni Directional Antennas

HARDWARE
Processor: 1.2 GHz CPU
Ethernet Ports
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
Power:
• US Version: 12 V ? 1.5 A
• EU Version: 12 V ? 1 A
WIRELESS FEATURES
Wireless Standards
• IEEE 802.11a/n/ac 5 GHz
• IEEE 802.11b/g/n 2.4 GHz
Reception Sensitivity: 5 GHz:
• 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
• 11ac VHT20MCS0:-98dBm, 11ac VHT20MCS8:-72dBm
• 11ac VHT40MCS0:-92dBm, 11ac VHT40MCS9:-68dBm
• 11ac VHT80MCS0:-89dBm, 11ac VHT80MCS9:-64dBm
Reception Sensitivity: 2.4 GHz:
• 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
• 11n VHT20MCS0:-97dBm, 11n VHT20MCS8:-72dBm
• 11n VHT40MCS0:-92dBm, 11n VHT40MCS9:-67dBm
Transmit Power
• CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
• FCC:<30dBm(2.4 GHz & 5 GHz)

• Wireless Functions: Enable/Disable Wireless Radio, WMM
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz

SOFTWARE FEATURES
• Quality of Service: Device Prioritization
• WAN Type: Dynamic IP/Static IP/PPPoE(Dual Access)/PPTP(Dual Access)/L2TP(Dual Access)
• Management: Parental Controls, Local Management, Remote Management
• DHCP: Server, DHCP Client List, Address Reservation
• Port Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP, TP-Link
• Access Control: Local Management Control, White List, Black List
• Firewall Security: SPI Firewall, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
Advanced Features:
• MU-MIMO
• Beamforming
• Smart Connect
• Airtime Fairness
• Quality of Service

SECURITY
WiFi Encryption :
• WEP
• WPA
• WPA2
• WPA/WPA2-Enterprise (802.1x)
Network Security:
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

SOFTWARE
Protocols
• IPv4
• IPv6
Parental Controls
• URL Filtering
• Time Controls
WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
Quality of Service: QoS by Device
Cloud Service:
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS
• TP-Link
• NO-IP
• DynDNS
Management
• Tether App
• Webpage

OTHER
System Requirements:
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
Certifications: FCC, CE, RoHS
Environment:
• Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing

What's in the box
1 x Archer C80 Wi-Fi Router
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
