TP-LINK Archer AX11000 Next Gen Tri Band Gaming Router,WI-FI 6 Technology

AX11000 Next-Gen Tri-Band Gaming Router

Archer AX11000

Key Features
The Fastest Wi-Fi 6 Gaming Router – AX11000 speed machine that delivers 12-streams Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive
Game Protector – Keep your accounts and documents safe with Homecare security system powered by Trend Micro.
Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
Ultra Connectivity - 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.
Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.
Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Dominate The Competition
Next-Gen Tri-Band Gaming Router
Archer AX11000

Enter The
10 Gbps WI-FI ERA
Faster speed the router is, less congestion for gaming rigs. Armed with Wi-Fi 6, Archer AX11000 becomes the next-level speed machine that offers astonishing Wi-Fi speeds up to 10756 Mbps with an extended range.

Lightning Attack To Defeat Latency
More connected devices shall bring more fun rather than dragging the performance. Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency. Take advantage of incredibly low latency to demolish your enemies, with your team crew together.

4X Capacity
OFDMA
Multiple devices share one channel at the same time.

MU-MIMO
Offer 4×4 connections to reduce wait time.

BSS COLOR
Keep transmission under overlapped signals.

Crush The Lag Win The Game
GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.

Know Your Network
GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.

Keep All Elements Security
GAME PROTECTOR keeps your accounts and system safe. This enhanced HomeCare™ security system is powered by Trend Micro™, delivering comprehensive antivirus protection that ensures your total security while gaming online.

Game On The Fast Lane
GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.
DFS expands available channel automatically, get on the more vacant lane and boost the game.

Battle-Tested Hardware

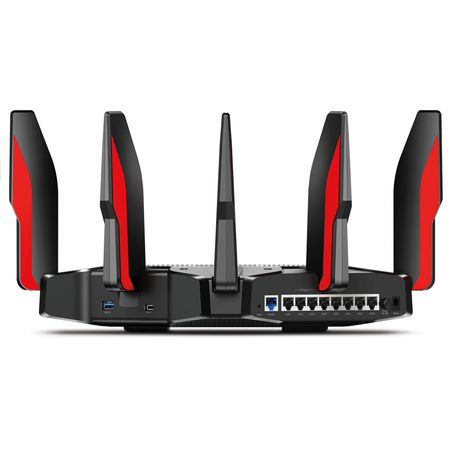

Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.

2.5 Gbps WAN Port; 1.8 GHz Quad-Core CPU 1 GB RAM; USB Type-A Type-C

Ready For Today And Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.

Meet the 6th Generation of WiFi
Wi-Fi 6 is designed to improve speed, increase efficiency and reduce congestion in heavy bandwidth usage scenarios

What is Wi-Fi 6? (as known as AX WiFi)
Wi-Fi 6 is the next-generation standard in WiFi technology. Wi-Fi 6 also known as “AX WiFi" or "802.11ax WiFi” builds and improves on the current 802.11ac WiFi standard. Wi-Fi 6 was originally built in response to the growing number of devices in the world. If you own a VR device, multiple smart home devices, or simply have a large number of devices in your household, then a Wi-Fi 6 router might just be the best WiFi router for you. In this guide, we’ll go over Wi-Fi 6 routers and break down how they’re faster, increase efficiency, and are better at transferring data than previous generations.

Explosively fast WiFi up to 9.6 Gbps
Ultra-Smooth Streaming
802.11ax 1024-QAM 4× Longer Symbol 160 MHz Channel 9.6 Gbps
802.11ac 256-QAM 6.9 Gbps
Wi-Fi 6 uses both 1024-QAM to provide a signal packed with more data (giving you more efficiency) and a 160 MHz Channel to provide a wider channel to make your WiFi faster. Experience stutter-free VR or enjoy stunningly vivid 4K and even 8K streaming.

4x More Capacity for More Devices
Ideal for Crowded Networks
802.11ax 8x8 DL/UL MU-MIMO OFDMA BSS Color 4X
802.11ac MU-MIMO
Wi-Fi 6 uses 8x8 uplink/downlink, MU-MIMO, OFDMA, and BSS Color to provide up to 4x larger capacity and to handle more devices. Come home to a virtually flawless smart home experience or throw house parties with a network built to handle all your guests and their devices.

Pack More Data ­
with 1024-QAM
25% faster than 256-QAM
With 1024-QAM, each symbol carries 10 bits rather than 8 bits, improving raw speeds by 25% compared to 802.11ac 256-QAM. Watch Netflix at home or live stream Twitch Broadcasts from your home computer – with 1024-QAM, streaming just got that much better.

More Speed and
Greater Stability
4x Longer OFDM Symbol
OFDM is a symbol that transmits data. It divides its data among smaller subcarriers for more stability and wider coverage. AX WiFi uses a 4x longer OFDM symbol to create 4x more subcarriers. Because of this, Wi-Fi 6’s longer OFDM symbol provides increased coverage and makes it 11% faster. Enjoy rock-solid coverage from your garage to the second story and get ultra-fast connections for all your smart home, mobile, gaming and desktop devices in between.

More Bandwidth on a Wider Channel
160 MHz Channel Width
Wi-Fi 6 expands the WiFi band from 80 MHz to 160 MHz, doubling the channel width and creating a faster connection from your router to the device. With Wi-Fi 6, you can enjoy 8K movies, large file downloads and uploads, and responsive smart home devices – all without buffering.

Increased Efficiency with OFDMA
Make Latency A Thing of The Past
The Wi-Fi 6 standard uses OFDMA for increased efficiency. Imagine your WiFi connection as a series of delivery trucks delivering data packets to your devices. With 802.11ac WiFi, each delivery truck or “packet” could only deliver one parcel to one device at a time. But with OFDMA, each truck can deliver multiple parcels to multiple devices simultaneously. This vast improvement in efficiency works for both uploads and downloads.

Connect to
More Devices Simultaneously
With 8 x 8 MU-MIMO
With traditional MU-MIMO, multiple users can access the router simultaneously without any noticeable decreases in bandwidth quality– up to a point. However, with 8 x 8 MU-MIMO, more than 8 streams are available for users to choose from. And whereas 802.11ac MU-MIMO only works for downloads, 8 x 8 MU-MIMO works with both uploads and downloads. This means that whether you’re streaming, downloading, torrenting, playing VR/AR, MMO’s or RPG’s; with Wi-Fi 6’s 8 streams, there’s more than enough bandwidth for everyone.

Minimize WiFi Conflicts with Your Neighbor
With Wi-Fi 6’s BSS Color
Interference from your neighbours' wireless networks can cause issues with your wireless signal. BSS (Base Service Station) Color, marks frames from neighbouring networks so that your router can ignore them. If you’ve ever lived in an apartment or close to your neighbours, this means that your router just became that much more efficient – no extra work required.

Reduce Power Consumption
With Target Wake Time
Target Wake Time (TWT) allows devices to negotiate when and how often they will wake up to send or receive data, increasing device sleep time and substantially improving battery life for mobile and IoT devices.

Specifications
Hardware Features
Processor: 1.8 GHz 64bit Quad-Core CPU
Memory: 1 GB RAM and 512 MB Flash
Interface: 8 1G/100M/10M LAN Ports, 1 2.5G/1G/100M WAN Port 1 USB-A 3.0 Port + 1 USB-C 3.0 Port
Button: Wi-Fi On/Off Button, Reset Button, WPS Button, Power On/Off Button, LED on/off Button
External Power Supply: 12V/5A
Dimensions ( W x D x H ) : 11.3 × 11.3 × 7.2 in. (288 × 288 × 184mm)
Antenna: 8 High-Performance External Antennas

Wireless Features
Wireless Standards : IEEE 802.11ax/ac/n/a 5 GHz; IEEE 802.11ax/n/b/g 2.4 GHz
Frequency: 2.4 GHz and 5 GHz

Signal Rate
5 GHz: 4804 Mbps(802.11ax)
5 GHz: 4804 Mbps(802.11ax)
2.4 GHz: 1148 Mbps(802.11ax)
compatible with 802.11a/b/g/n/ac Wi-Fi standards

Reception Sensitivity
5 GHz1:
11a 6Mbps?-96dBm, 11a 54Mbps:-78dBm
11ac VHT20MCS0:-95dBm, 11ac VHT20MCS11:-65dBm
11ac VHT40MCS0:-93dBm, 11ac VHT40MCS11:-62dBm
11ac VHT80MCS0:-90dBm, 11ac VHT80MCS11:-59dBm
11ac VHT160MCS0:-87dBm, 11ac VHT160MCS11:-54dBm
11ax HE20MCS0:-94dBm, 11ax HE20MCS11:-62Bm
11ax HE40MCS0:-91dBm, 11ax HE40MCS11:-59dBm
11ax HE80MCS0:-88dBm, 11ax HE80MCS11:-57dBm
11ax HE160MCS0:-84dBm, 11ax HE160MCS11:-54dBm
5 GHz2:
11a 6Mbps?-96dBm, 11a 54Mbps:-78dBm
11ac VHT20MCS0:-95dBm, 11ac VHT20MCS11:-65dBm
11ac VHT40MCS0:-93dBm, 11ac VHT40MCS11:-62dBm
11ac VHT80MCS0:-90dBm, 11ac VHT80MCS11:-59dBm
11ac VHT160MCS0:-87dBm, 11ac VHT160MCS11:-54dBm
11ax HE20MCS0:-94dBm, 11ax HE20MCS11:-62Bm
11ax HE40MCS0:-91dBm, 11ax HE40MCS11:-59dBm
11ax HE80MCS0:-88dBm, 11ax HE80MCS11:-57dBm
11ax HE160MCS0:-84dBm, 11ax HE160MCS11:-54dBm
2.4 GHz?
11g 6Mbps?-97dBm, 11a 54Mbps:-79dBm
11n HT20MCS0:-97dBm, 11n HT20MCS7:-78dBm
11n HT40MCS0:-95dBm, 11n HT40MCS7:-75dBm
11ac VHT20MCS0:-96dBm, 11ac VHT20MCS11:-67dBm
11ac VHT40MCS0:-94dBm, 11ac VHT40MCS11:-64dBm
11ax HE20MCS0:-96dBm, 11ax HE20MCS11:-64dBm
11ax HE40MCS0:-93dBm, 11ax HE40MCS11:-61dBm

Wireless Functions : Enable/Disable Wireless Radio, Guest network, DFS, MU-MIMO, OFDMA
Wireless Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Transmission Power
CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)
FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz), <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)

Guest Network : 2.4 GHz guest network0 × 1, 5 GHz guest network × 1

Software Features
Quality of Service : Advanced Gaming Qos powered by TrendMicro
WAN Type : Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management : Advanced Parental control powered by TrendMicro, Local Management, Remote Management
DHCP : Server, DHCP Client List, Address Reservation
Dynamic DNS : DynDns, NO-IP, TP-Link
VPN : PPTP, OpenVPN
Protocols : IPv4, IPv6
NAT : Port Forwarding, Port Triggering, UPnP, DMZ

Others
Certification : FCC, CE, RoHS

System Requirements :
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)

Environment :
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

What's in the box
Wireless Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
