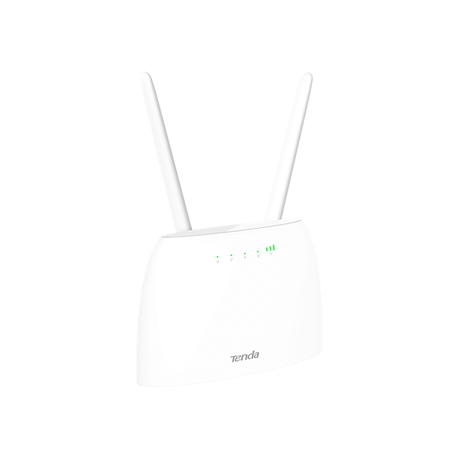

Tenda 4G06 N300 Wi-Fi 4G VoLTE Router

Tenda 4G06 is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services.

Wiring free Broadband access wherever you are
With LTE signal coverage for best performance and allows you to receive Internet access without cable and fiber ,it is the ideal choice for remote areas such as rural and suburban ,temporary store,holiday home ,giving devices ability to access to the Internet wherever and whenever the user is located.

High Quality Voice service
Based on the IP Multimedia Subsystem (IMS) network, with specific profiles for control and media planes of voice service on the LTE wireless broadband service.

Share your Wi-Fi up to 32 devices
Thanks to a powerful 880MHz and 28nm processor ,it shares the Wi-Fi up to 32 devicees base on dependable network.

Instantly access a mobile network with a Mini SIM card
Access a mobile network instantly just with an authorized Mini SIM card

Specifications
4G/3G standards: FDD LTE,TDD-LTE,WCDMA
4G Mobile Bands
4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB
4G TDD-LTE:Band38/Band40
3G WCDMA:B1/B2/B5/B8
2G GSM:B3/B8
Max 4G speed
DL:150Mbps
UL:50Mbps
Wi-Fi standards: 802.11b/g/n
Wi-Fi frequency: 2.4GHz
Wi-Fi speed: 300Mbps
Wi-Fi transmit Power: up to 20dBm

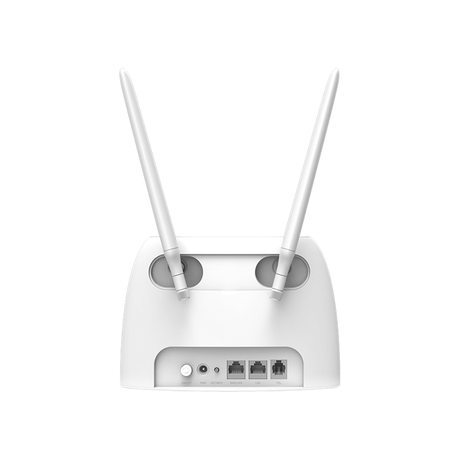

Interface
1x 10/100 Mbps LAN/WAN Port
1x 10/100Mbps LAN Port
1x Tel Port
1x 2FF SIM Card Slot
Buttons
Power on/off
WPS/Reset
Antenna
2 detachable 4G/3G/2G Antennas
2 Internal Wi-Fi Antennas
LED indicators
Power
Wi-Fi
LAN
Internet
4G/3G/2G Signal strength(3 Bars)
Dimensions: 18512660mm?LWH?
Weight: +- 350g
Power Supply
Input power: AC 100V-240V 50/60Hz
Output power: DC 12V==1A
WAN Type: 4G/3G/2G or Wired
4G/3G Features
Auto-APN
Auto dial-up
Roaming
SMS(Send/Receive/Delete)
VoLTE/CSFB
USSD
Data limted
PIN Management
Wi-Fi functions
Broadcast and Hide Wi-Fi name
Guest network
Wi-Fi schedule
Wi-Fi security: WEP,WPA-PSK, WPA2-PSK, WPA/WPA2
Software features
APP/Local/remote management
Parental control
DHCP(DHCP Server and Client)
Virtual Server(UPnP/DMZ/Port Forwarding)
DDNS(DynDns, 88ip)
VPN(PPTP Client/L2TP Client/PPTP Server)
Firewall
QOS
Upgrade firmware from local or OTA
IPV4/IPV6
TR069
Certifications: FCC, CE, ROHS
Operating Temperature: 0?~40?
Operating Humidity: 10% ~ 90% RH Non-condensing

What's in the box
1 x 4G LTE Router
2 x Detachable antennas
1 x Ethernet cable
1 x RJ11 Tel cable
1 x Power adapter
1 x Quick Installation Guide
