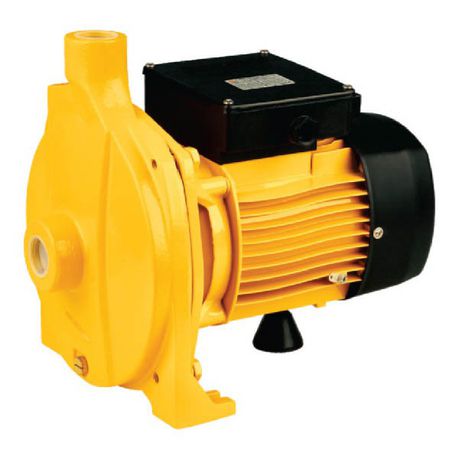

Pro-Pumps 0.75KW Centrifugal Non-Pulsating Flow Pump 95L/min plus Automatic Pump Control and Pressure Flow Switch
Centrifugal pumps are able to offer high flow rates, providing smooth non-pulsating delivery, this regulates the flow rate and provides a wide range.
This series is particularly suitable where space is at a premium to pump clean, fresh water.
Its ideal use is as a pressure and flow pump for households, garden irrigation, agriculture and industrial systems.
Under advisement other clean non-aggressive, non-explosive liquids with similar characteristics to water may be pumped.
Features:
- Ideal for Boosters
- Long Lasting Brass Impeller
- High Non-Pulsating Flow
- Thermal Overload Protection
- Voltage: 220 - 240 V at 50Hz
- Performance Range:
- Flow rate up to 60L/min at 24m

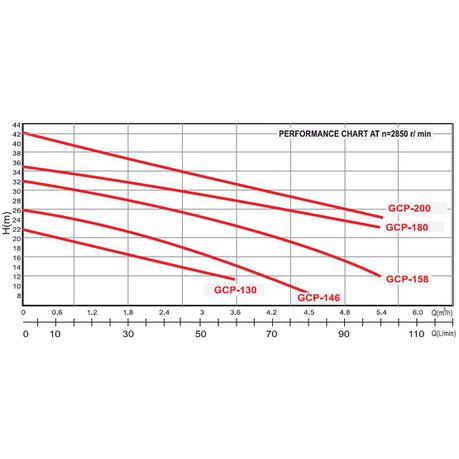

- See Performance Chart for Height and L / min values
- Max Head Height Up to 32m
- Operating Limits:
- Suction Lift up to 7m
- Maximum ambient temperature +40C
Plus

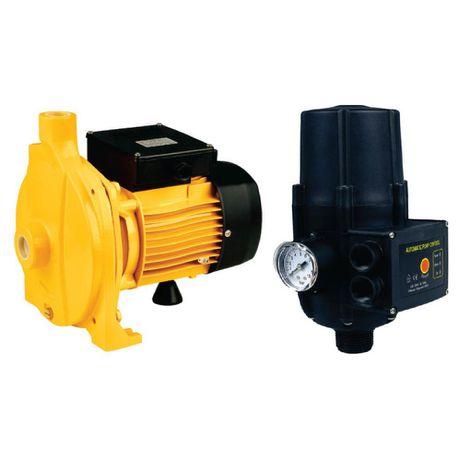

Pro-Pumps Automatic Pump Control and Pressure Flow Switch
Pressure Flow control switches were designed for easy pump automation in situations requiring regulated flow and pressure.
They are traditionally applied to centrifugal pumps to create a 'pressure booster set'. This set then is an automatic on-off & pressure regulation unit, set to deliver a specific flow for a specific demand.
As each unit is governed by the size of the Pump motor, there specification on flow and pressure vary from application to application. However they are limited in terms of their maximum output tolerances.
Although these units are adjustable, in certain instance, self-adjustment is not advised for safety when in operation.
Advantages:
- Versatility
- Automatic starting and stopping
- Water Shortage Protection
- Simplicity
- Display of each function by means of lighted indicator lights and pressure gauge
- Reliability:
- Internal Components Resistant to Corrosion
Specifications:
- Flow Up to: 100L/min or 10m3 / h
- Max Current: 10 A
- Max Operating Pressure: 10 bar
- Single phase, 220 - 240V 50Hz
- Multi-use design with IP 65 protection
- Replaceable PC board
What's in the box
Pump Contoller
Pump
