DIY Install - No Monthy Contracts Or Payments
Only requirement for full functionality is a GSM SIM Card with Data
GSM/GPRS network used and data usage is very very low.
Applications:
Suitable for private vehicles, enterprises and institutions, leasing companies, bus companies, rental companies, passenger transport companies, logistics convoy cars, ambulances, operating vehicles, engineering vehicles, special vehicles, ships and offshore

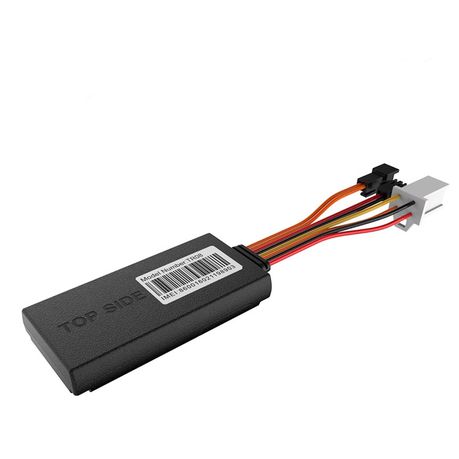

SMART Mini GPS Tracker
1) Intelligent start GPS positioning

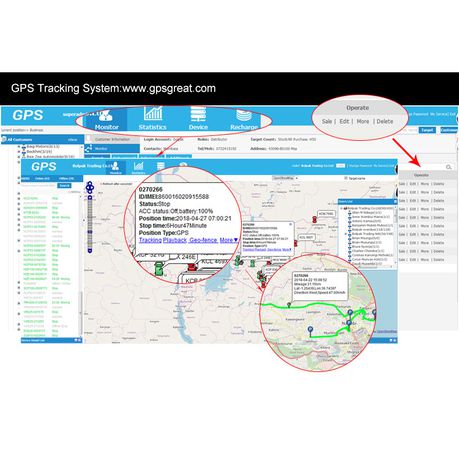

2) SMS Command Controlled, Online or via mobile APP
3) Free press the power button, Once charged began to work
4) No maintenance and it has the fault self-recovery function
5) Equipped with a built-in power switch, wide range input voltage
6) GPS tracking to realize single positioning, timing and positioning, continuous positioning
7) Password Controlled for super user
8) Easy installation, you only need to hide or open it in the car for tracking and can set the GPS positioning time
Mini GPS tracker Performance and Parameters
GSM baseband IC MTK 6261D
GPS IC Ublox G7020
GSM band 850/900/1800/1900MHz
GPRS Class12
GPS signal L1,1575.42MHz C/A code
GPS channels 56 channels
GPS fixed Time with AGPS Cold start 15s, hot start 2s
GPS receiving sensitivity Tracking: -159dBm,
Capturing: -143dBm
GPS positioning accuracy 10-15m
Average standby current Average working current Working temperature -20 - +70 centigrade
Working humidity 5% to 95%
GPS ANT highly sensitive ANT
GSM ANT dual-band monopole antenna
ACC Detect Support Yes
Oil/Power Control Support Yes
Working Voltage 9V~ 36V

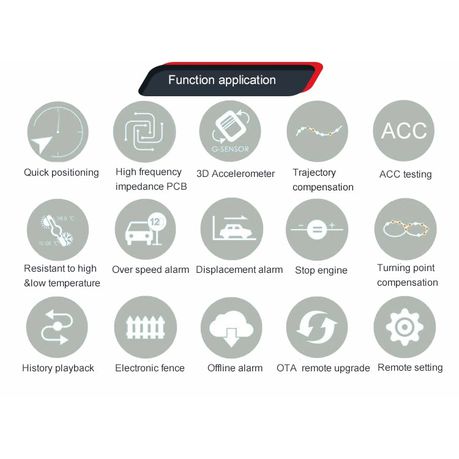

Special Features:
- Support 2G GSM network
- Built-in GSM&GPS antenna
- Real-time positioning
- Historical tracking
- Geo-fence In/Out Alarm
- ACC detection, exact status
- Cut and Restore oil and electric
- SOS security alarm
- Over speed alarm/vibration alarm

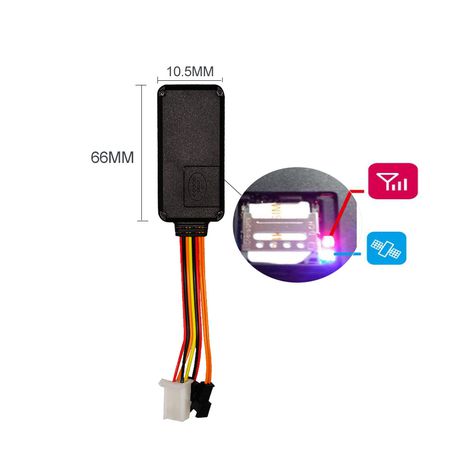

- GPS/GSM LED light: Blue and Red

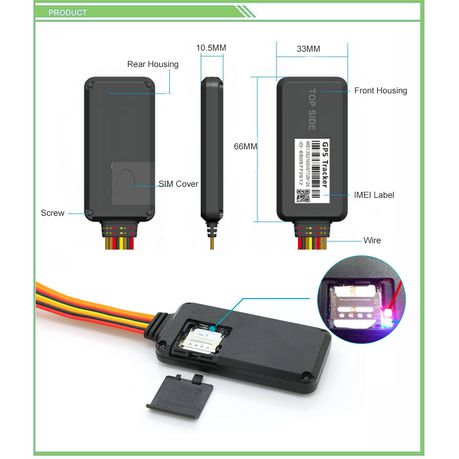

- Mini size: 66x33x10.5mm
- Working voltage: 9.5V-36V
What's in the box
GPS with wiring
