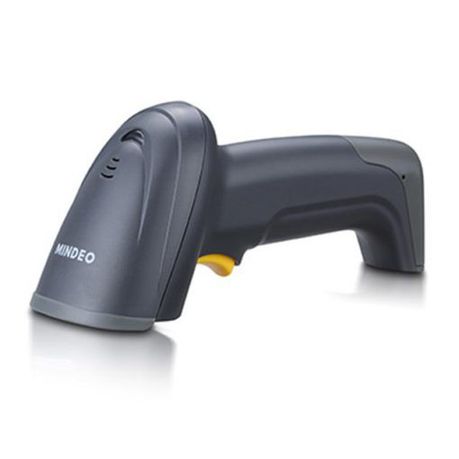

Mindeo MD2000AT 1D Handheld Laser Barcode Scanner 200/S Decode Speed IP50 Autosense with Stand
Features:
- Ergonomic, snappy and stylish design.
- Suitable to operate in diverse working environment.
- Read all major 1D symbols.
- Maximal decode resolution at 3mil or 5mil.
- Infra-red auto-induction.
- Mirror surface reflection cancellation.
- Ready for all POS systems.
- Easy firmware upgrade.
Specifications:
- Mechanical
- Dimensions : Height × Width × Depth : 76 mm × 66.5 mm × 168 mm
- Weight : 121 g, without cable
- Cable Straight : 2.0 m
- Connector type : RJ-45 phone jack connector
- Case material : ABS
- Exit window material : PC
- Indicator : Beeper, LED
- Interface supported : RS-232, USB Keyboard, USB virtual COM
Electrical:
- Input voltage : 5 VDC ± 0.25 V
- Power : 525 mW (Operating); 850 mW (Max.)
- Current : 30 mA (Standby); 105 mA (Operating); 170 mA (Max.)
Scan Performance:
- Laser : 630-650 nm laser diode
- Decoding rate : 200 times/sec
- Scanning angle : ±65°, ±70°, ±42° (Skew, Pitch, Roll)
- Print contrast : 25% minimum reflection difference
- Decode capability
- UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 , Matrix 2 of 5, Codabar (NW7), Code128,UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, GS1 DataBar (formerly RSS) variants, Telepen
Decoding depth & Min. element width:
- (1 mil = 0.0254 mm)
- 3 mil: 27 - 65 mm
- 4 mil: 27 - 60 mm
- 5 mil: 18 - 132 mm
- 10 mil: 10 - 320 mm
- 13 mil: 16 - 380 mm
- 15 mil: 13 - 500 mm
- 20 mil: 19 - 620 mm
- 30 mil: 25 - 770 mm
Environmental:
- Temperature : 0° to 50°C (32° to 122°F), Operating; -40° to 60°C (-40° to 140°F), Storage
- Humidity : 5% to 95% (non-condensing)
Safety:
- Laser safety: EN60825-1, Class 1
- EMC: EN55022, EN55024
- Electrical safety: EN60950-1
- Drop resistance : 30 times 2.0 m (6.5 ft) drops to concrete
- Sealing: IP50
What's in the box
1 x Scanner
1 x Stand
1 x Cable
1 x User Manual
