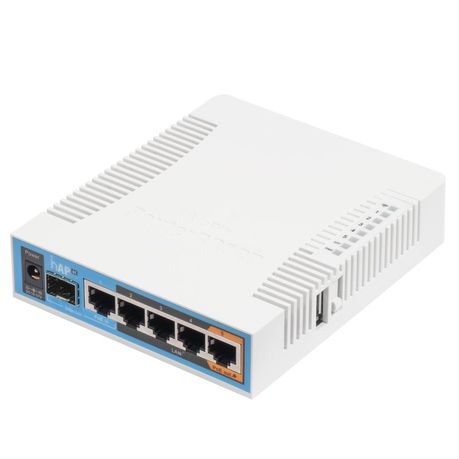

Mikrotik Routerboard hAP AC

hAP ac
Dual concurrent triple chain 2.4/5GHz AP, 802.11ac/a/n/b/g, Five Gigabit Ethernet ports, PoE-out on port 5, SFP, USB for 3G/4G support or storage.

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.
The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.
Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.

RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specifications
Details
Product code : RB962UiGS-5HacT2HnT
Architecture : MIPSBE
CPU : QCA9558
CPU core count : 1
CPU nominal frequency : 720 MHz
Dimensions : 114 x 137 x 29mm
RouterOS license : 4
Operating System : RouterOS
Size of RAM : 128 MB
Storage size : 16 MB
Storage type : FLASH
MTBF : Approximately 200'000 hours at 25C
Tested ambient temperature : -40°C to 70°C

Wireless capabilities
Details
Wireless 2.4 GHz Max data rate : 450 Mbit/s
Wireless 2.4 GHz number of chains : 3
Wireless 2.4 GHz standards : 802.11b/g/n
Antenna gain dBi for 2.4 GHz : 2.5
Wireless 2.4 GHz chip model : QCA9558
Wireless 2.4 GHz generation : Wi-Fi 4
Wireless 5 GHz Max data rate : 1300 Mbit/s
Wireless 5 GHz number of chains : 3
Wireless 5 GHz standards : 802.11a/n/ac
Antenna gain dBi for 5 GHz : 2
Wireless 5 GHz chip model : QCA9880
Wireless 5 GHz generation : Wi-Fi 5
AC speed : AC1750

Ethernet
Details
10/100/1000 Ethernet ports : 5

Fiber
Details
SFP ports : 1

Peripherals
Details
Number of USB ports : 1
USB Power Reset : Yes
USB slot type : USB type A
Max USB current (A) : 1

Powering
Details
PoE in : Passive PoE
PoE in input Voltage : 11-57 V
Number of DC inputs : 2 (DC jack, PoE-IN)
DC jack input Voltage : 11-57 V
Max power consumption : 17 W
FAN count : Passive

PoE-out
Details
PoE-out ports : Ether5
PoE out Passive : PoE
Max out per port output (input < 30 V) : 700 mA
Max out per port output (input > 30 V) : 350 mA
Max total out (A) : 700 mA

Certification & Approvals
Details
Certification : CE, FCC, IC, EAC, ROHS

Other
Details
PCB temperature monitor : Yes
Voltage Monitor : Yes

What's in the box
1 x hAP AC

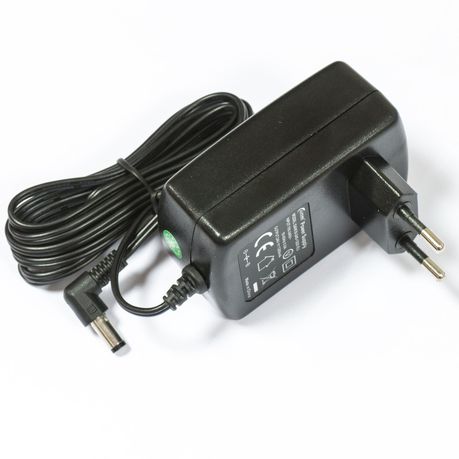

1 x 24V 1.2A Power Adapter
