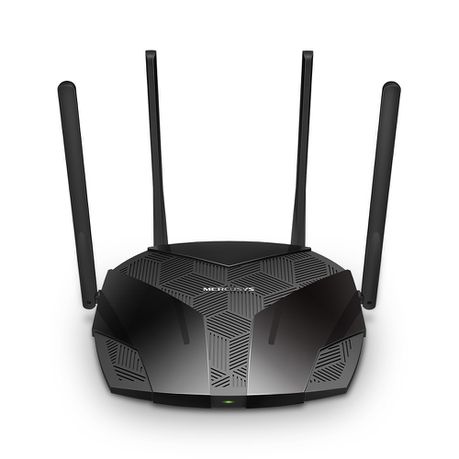

Mercusys MR60X AX1500 Wireless Dual-Band Gigabit Router

MER-MR60X
- 1.5 Gbps Wi-Fi 6 Speed: 1201 Mbps + 300 Mbps Dual-Band Speed (1)
- 4 x More Capacity: Connect more Wi-Fi devices with OFDMA and MU-MIMO (2)
- Broader Wi-Fi Coverage: Four powerful high-gain antennas with Beamforming
- Gigabit Wired Connections: Full Gigabit Ports for PCs, IPTVs, and Game Consoles

Features:
Parental Controls:
- Establish appropriate policies to protect children with responsible, safe internet access
Smart Connect:
- Intelligently chooses the best available band for each device
Guest Network:
- Provides a separate network for guests to ensure your security and privacy
IPTV Supported:
- Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
Quality of Service:
- Prioritizes devices you select to perform better
IPv6 Supported:
- Allows you to enjoy IPv6 services provided by your ISP and visit IPv6 websites
Immerse Your Home in Wi-Fi:
- Four powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.
More Streams, More Devices, More Fun:
- With uplink/downlink MU-MIMO and OFDMA, MR60X transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of the whole network under the same conditions. (3)
1/ Less Wi-Fi Interference: BSS Colour marks the data frames from different APs which helps minimize the signal interference from your neighbours to improve transmission efficiency. (2)
2/ Eco-Friendly Power Saving: Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend battery life. (2)
3/ Overall Security Protection: The latest security standard, WPA3, provides improved comprehensive Wi-Fi protection to defend your devices and privacy information against brute-force attacks. (4)

Note: Specifications are subject to change without notice.
(1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and number of connected devices
are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client
location.
(2) Use of 802.11ax (Wi-Fi 6), and features including OFDMA, MU-MIMO, 1024-QAM, BSS Color, and Target Wake Time requires clients to also support the corresponding features. Actual power
reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors.
(3) The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one
mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment
scenario.
(4) Use of WPA3 requires clients to also support WPA3.
(5) This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11AX specifications.
(6) Further software upgrades for feature availability may be required.

Specifications:
HARDWARE

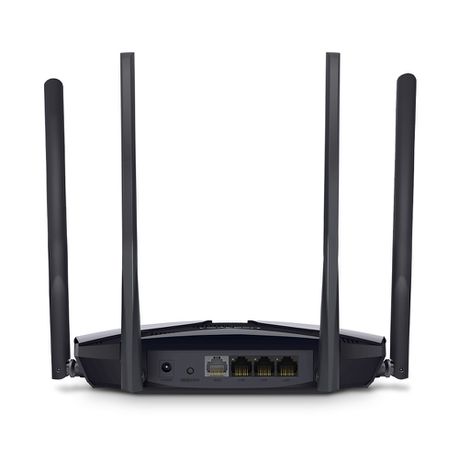

- Ports: 1 x Gigabit WAN Port + 3 x Gigabit LAN Ports
- Button: Reset/WPS Button
- Antennas: 4 x 5 dBi Fixed Omni-Directional Antennas
WIRELESS
- Wireless: 1201 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ax/ac/a/b/g/n Wi-Fi standards
- OFDMA: Allows simultaneous data transmission to and from several devices sharing one band,
satisfying high network capacity demands. (2)
- MU-MIMO: Transfers data to more devices simultaneously, improving overall network efficiency. (2)
- 1024-QAM: Packs more effective data at once to achieve a 1.25 x speed increase over 802.11ac 256-QAM. (2)
- Long OFDM Symbol: Delivers 4 x more data subcarriers to increase range, stability, and speed. (2)
- Target Wake Time (TWT): Reduces power consumption for your mobile and IoT devices during data transmissions. (2)
- BSS Colour: Minimizes interference from neighbouring signals to improve transmission efficiency. (2)
- EIRP:
1) 2.4 GHz: < 20dBm (EIRP)
2) 5 GHz: < 23dBm (EIRP)
- Reception Sensitivity:
a) 11g 6Mbps: -96dBm
b) 11g 54Mbps: -78dBm
c) 11n HT40 MCS7:-74dBm
d) 11n HT20 MCS7:-77dBm
e) 11a 6Mbps:-94dBm
f) 11a 54Mbps:-76dBm
g) 11ac VHT20 MCS8:-71dBm
h) 11ac VHT40 MCS8:-68dBm
i) 11ac VHT80 MCS8:-65dBm
- Wireless Function:
1/ Enable/Disable Wireless Radio
2/ WMM
- Security Features:
a) Guest Network Access
b) Firewall Protection
c) Wireless Security: WPA-PSK / WPA2-PSK / WPA3 wireless encryption
d) VPN Support: OpenVPN, PPTP supported
SOFTWARE
- WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- DHCP: Server, DHCP Client List
- NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Management:
1) Access Control
2) Local Management
3) Remote Management
- Firewall Security: SPI Firewall, IP and MAC Address Binding
- Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
OTHERS
- Environment:
1/ Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
2/ Operating Humidity: 10% – 90% Non-Condensing
3/ Storage Humidity: 5% – 90% Non-Condensing

What's in the box
1 x AX1500 Wireless Dual-Band Gigabit Router MR60X
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
