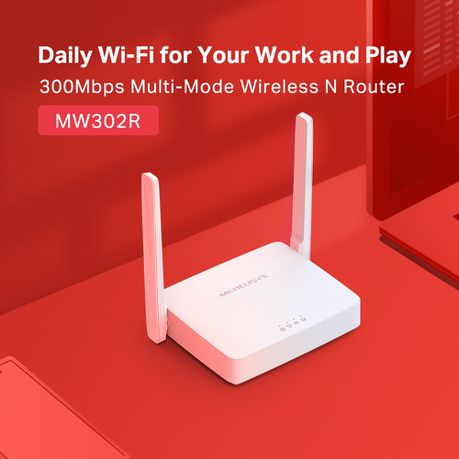

MERCUSYS 300Mbps Multi-Mode Wireless N Router

Fast Wi-Fi for Daily Life — MW302R provides fast and stable connections to meet all your network needs with speeds of up to 300 Mbps
Broader Coverage — Equipped with high gain external antennas to deliver strong Wi-Fi signals to every corner of your home
Multi-Mode — Four modes in one device to satisfy all application scenarios
Easy installation — Intuitive webpage guides you through the setup process in minutes
Active Parental Controls — Establish appropriate access policies to protect children with responsible, safe internet access
Compatible with IPv6 (Internet Protocol version 6)

WirelessWireless Standards
IEEE 802.11b/g/n

Frequency
2.4-2.4835GHz

WiFi Speeds
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)

Reception Sensitivity
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER

Transmission Power
<20dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging

SoftwareWAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management
Access Control, Local Management, Remote Management

DHCP
Server

Port Forwarding
Virtual Server, UPnP, DMZ

Firewall Security
IP and MAC Address Binding

Protocols
IPv4, IPv6

Guest Network
2.4GHz Guest Network

HardwareDimensions
114 mm × 94 mm × 26 mm

Button
Reset Button

External Power Supply
5V/0.6A

Antenna Type
2 * 5dBi

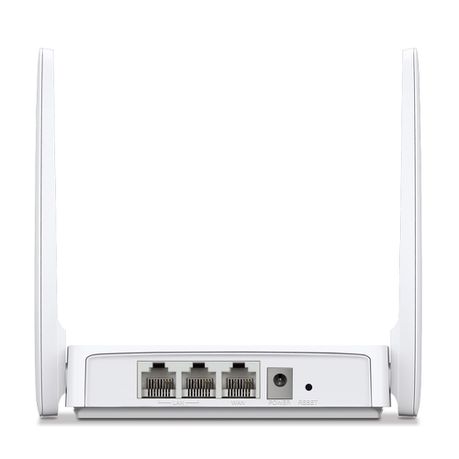

Ethernet Ports
210/100Mbps LAN Ports &
110/100Mbps WAN Port

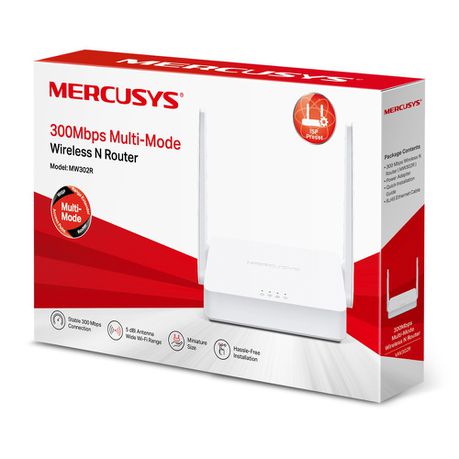

What's in the box
300Mbps Wireless N Router (MW302R)
Power Adapter
Quick Installation Guide
Ethernet Cable
