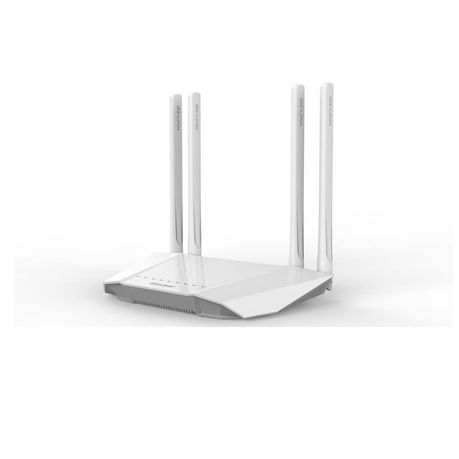

LB-LINK BL-CPE450 LTE Router

Hardware Specification

CPU : MT7628DA/580MHz
DRAM/FLASH : 64MB DDR2/8M SPI

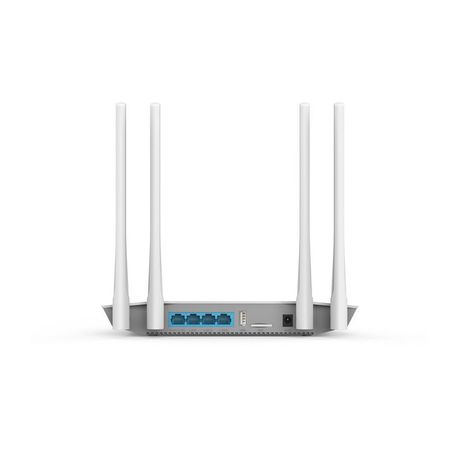

Interface :
3x RJ45 10M/100M LAN Ethernet interfaces
1 x RJ45 10M/100M WAN Ethernet interfaces
1 x Reset
1 x Power jack 12V 1A
1 x USB2.0
1 x SIM?Standard?
Antenna : 2.4G?802.11N??2T2R 4G ?2T2R
Gain : .4G ?5dBi 4G?1-4Dbi
Range : 2.4-2.4835GHZ
LED : PWR?WIFI?4G?LAN1-LAN3?WAN/LAN4
Transmit Power -
11b?1/2/5.5/11Mbps
11g?6/9/12/18/24/36/48/54Mbps
11n? 300Mbps ?MAX?
Spread-spectrum technique : DSSS
Data Encryption : WPA-PSK/WPA2-PSK?WPA/WPA2
Modulation type -
11b?CCK?QPSK?BPSK
11g?OFDM
11n?QPSK?BPSK?16-QAM?64-QAM
Media access protocol : CAMA/CA with ACK
RF Power :
11b?18dBm@MC0-7
11g?17dBm@6-54Mbps
11n?16dBm@6-54Mbps
Receiver Sensitivity :
11b:-90dBm@1Mbps,-84dbm@11Mbps,
11g: -86dBm@6Mbps,-69dbm@54Mbps,
11n: -85dBm@MCS0,,-67dbm@MCS7,
-86dBm@MCS8,-64dbm@MCS15,,
4G Modulation type /GNSS : LTE CAT4?compatible with LCC/PCIE/M2 package?
GNSS function : GPS?GLONASS?BeiDou/Compass?Galileo?QZSS
4G module RF Power :
Class 4 (33dBm±2dB) for GSM850
Class 4 (33dBm±2dB) for EGSM900
Class 1 (30dBm±2dB) for DCS1800
Class 1 (30dBm±2dB) for PCS1900
Class E2 (27dBm±3dB) for GSM8508-PSK
Class E2 (27dBm±3dB) for EGSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class E2 (26dBm±3dB) for PCS1900 8-PSK
Class 3 (24dBm+1/-3dB) for WCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
LTE Character :
Support 3GPP R8 non-CA cat 4 FDD
Support 1.4MHZ-20MHZ RF bandwidth UL support MIMO
LTD-FDD? DL 150Mbps?MAX?
UL50Mbps?MAX?
TD-SCDMA Character :
Support CCSA Release 3 TD-SCDMA
DL?MAX? 4.2Mbps UL?MAX?
2.2Mbps

What's in the box
1x BL-CPE450M Router
