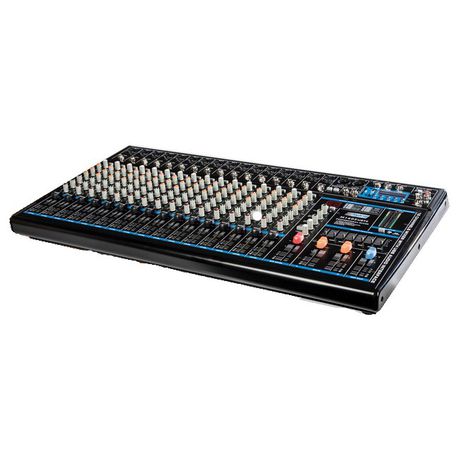

Hybrid M1602UBTX Band Mixer

Specifications

Mic channel controls:

16 mono mic / line channels
xlr, 1/4 jack-balanced
mic input impendance / 3k ohms
line inpu impendance / 47k ohms
-20dB attenuation switch
gain potentiometer
individual low / 80Hz, mid / 2.5kHz, and
Hi / 15 kHz, EQ potentiometers / -15/+15 dB
effects send potentiometer
pan potentiometer
level fader / 60mm
- Power conditioner or surge protection recommended

General:

balanced XLR outputs left and right
unbalanced / 1/4" jack control room outputs left and right
RCA record output left and right / 10k ohms
monitor unbalaned output 1/4" jack output / 600 ohms
mix unbalanced output 1/4" jack / 600 ohms
effect unbalanced send 1/4" jack / 600 ohms
2TK play / unbalanced RSA left and right / 10k ohms
THD / 20-20kHz, - 0.1%
noise / -120dB max gain
frequency response / 20-20kHz, +/-2dB
inbuilt PSU, IEC mains connection
dimensions / 570mm {w} 360mm {d} 105mm {h}

Master Controls:

16 digital effects processor
effects repeat potentiometer
effects send level potentiometer
effects level fader / 60mm
monitor send potentiometer
2TK / MP3-USB level potentiometer, switchable
MP3-USB media player, recorder with LCD
screen play, pause, record, folder select
headphones potentiometer
48v phantom switchable channels 1-9 and 10-12
individual left and right master level faders / 60mm
mix out fader / 60mm
12 bar Led master level / mix out - monitor
7 band graphic equaliser / +/- 12dB 100, 250, 500, 1K, 2K, 4K, 8K - Hz

What's in the box
1 x Mixer with Power Cord
