H2B 2-in-1 Barcode Scanner - Bluetooth & 2.4G Wireless

1. Scanning 1D & 2D barcodes effortlessly:
2. CMOS Image Technology, all main 1D&2D barcode decoding capability.
3. Multi compatibility:
4. Bluetooth version can work with Apple ios, Andriod, Window PC/Tablets
5. Ultra-low power consumption:
6. charging 4.5h, continuously working 30H.
7. High volume lithium battery:
8. 2000mAh high volume recharge Li-ion battery.
9. Ultra-long distance transmission:
10. Wireless 70m distance, wired & wireless mode easily convertible.
11. Widely used:
12. Application for Stores, supermarkets, hospitals, ticket barriers, logistics, banks etc.

Product paramaters

Acquisition Performance
Sensor Image Type: CMOS Sensor, 0.3M Pixels, 640 X 480 Pixels
Scanner Speed: 1/30fps
Field of View: Diagonal 58°Horizontal 42°?Vertical 36° Scan Capability
Scan Precision: 2D?5mil?1D?4mil
Depth of Field: Testing Condition DOF
- Code 128 10mil 18bytes Paper code 60~310mm
- Code 128 18bytes Phone Code 70~260mm
- QR 10mil 160bytes Paper code 30~120mm
- DM 15mil 100bytes Paper code 30~200mm
- QR 18bytes Phone Code 50~460mm
Scan Angle: Roll 360°?Pitch ± 55°?Screw ± 55°
- Symbologies 2D code: QR Code, Data Matrix, PDF417?Hanxin Code?Dotcode etc
- 1D code: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128,
- ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, - Codabar, MSI/MSI PLESSEY, GS1 DataBar etc

OCR-A?OCR-B Code (* Customization Version)
Print contrast 20% minimum reflectance
LED Illumination White
Aimer RED String/Green String (Need Customization)
Wireless:
Frequency: 2400MHz
Wireless: 2.4G + Bluetooth
Communication Distance: 70meter (open space)
Transmission Rate: 1Mbps
Physical Dimensions:
Dimension ?L×W×H??120mm×71mm×176mm
Weight < 190g
Interface
External Interface USB-COM?USB KBW?support GBK?GB2312?UTF Chinese?
Cable: USB A Type Cable
Scan Mode: Trigger Mode/Continuous Mode/Sense Mode
Notification: Beeper?RED LED Power Charging?Green LED Decoding Successfully? Blue LED Wireless Connection
Environmental Parameter
- Operating Temperature -30? ~ 70?
- Storage Temperature -40? ~ 80?
- Humidity Relative 5% ~ 95%?no-condensing?
- Ambient Light Max.100,000 Lux

Safety:
- EMC CE & FCC?GB9254-2008 B?GB/T17618-1998
- ESD ± 15KV(non-contacting)?± 8KV(contacting)
- RoHS Certified
- Electrical Parameter
- Battery 2000mAH
- Power Charge 5V±0.25V@1A??Charging 2h
- Operating Current 200mA?Standby 90mA
- Turn-off Current ? 0mA

What's in the box

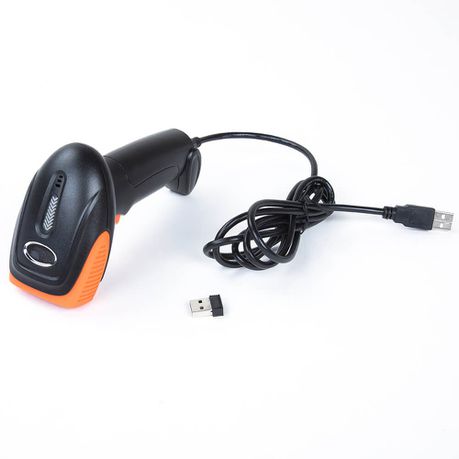

1 x Barcode Scanner
1 x USB Cable
1 x Wireless dongle
1 x user manual
