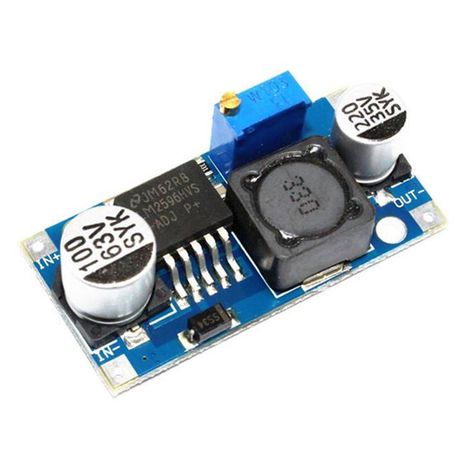

DC-DC Step-Down Converter Adjustable Output 1.25V-35V 3A LM2596

DC/DC step-down converter, voltage regulator. Wide input voltage range 3.2V and 40V DC to smaller output 1.25V and 35V DC with a 3A load and excellent line and load regulation.

In some projects, you might need different voltages (3-35V) for your devices. Without this kind of DC power source, you’ll find it time-consuming to buy a new one. The delay of a project can be so annoying, but no worries! This module can speed up prototyping, because you can get the voltage you need (such as 3.3V, 5V and 9V) as easy as that.
Input must be >1.5V higher than output.

Features:
- Wide Output Voltage Range
- Ensured 3A Output Load Current
- Input Voltage Range Up to 40V
- Excellent Line and Load Regulation
- Low Power Standby Mode, Typically 80uA
- High Efficiency Up to 92%
- Precise potentiometer for voltage adjustment
- Thermal Shutdown and Current Limit Protection

Specifications:
- Input Voltage: 3.2V – 40VDC
- Output Voltage: 1.25V – 35VDC
- Max. Output Current: 3A
- Max. Efficiency: 92%
- Output Ripple: ?100mV
- Switching Frequency: 65KHz
- Operating Temperature: -45C to +85C
- Dimensions: 52mm x 21mm x 14mm (l x w x h)

What's in the box
1x DC-DC Step-Down Converter PCB 1.25V-35V
