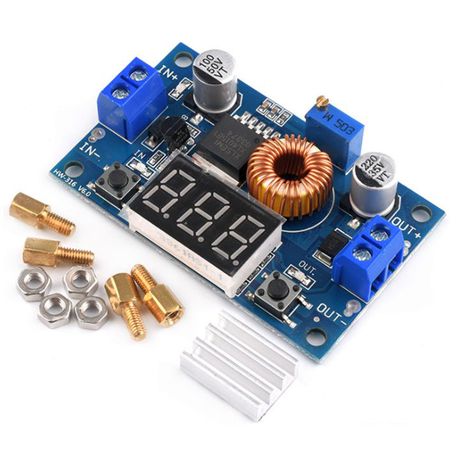

DC-DC Step Down Converter Adjustable 1 -36V 3A Power Supply XL4015

XL4015 DC DC Adjustable Step Down Board 75W 5A LED Voltmeter Power Supply Module 4.0-38V to 1.25V-36V Buck

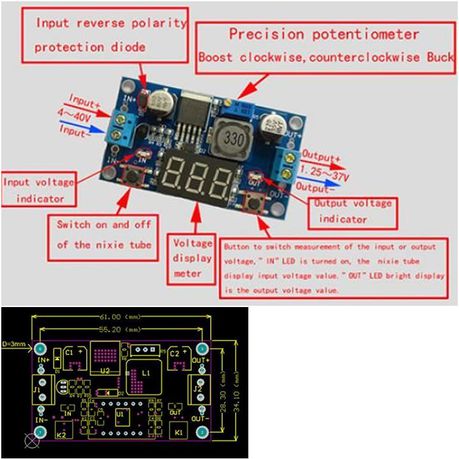

This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module,capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.The module with a voltage meter to display the input voltage and output voltage, and the voltage can be corrected through the button to improve the accuracy of the voltmeter.

Features:
- LED power indicator.
- Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turned off by another button. Mentioned states are able to be memorized, is not lost even if the power is disconnected. (On-board marked “IN” LED is turned on, the nixie tube display input voltage value, “OUT” LED bright display is the output voltage value).
- Special launch, the voltmeter calibration function, will never exist voltmeter inaccurate!

Specifications:
- Input voltage range:4 -38VDC(Note: input voltage not exceeding 38V)
- Output voltage range:1.25-36VDC adjustable
- Output current: 0-5A
- Output power: 75W
- Voltmeter range: 4 to 40V, error +-0.1V
- Operating frequency: 180KHz
- High efficiency up to 96%
- Built in thermal shutdown function
- Built in current limit function
- Built-in output short protection function
- Input reverse polarity protection: None (if required, high current diode in series with the input).
- L x W x H =6.63.91.8CM

What's in the box
1x Power Supply PCB 38V
