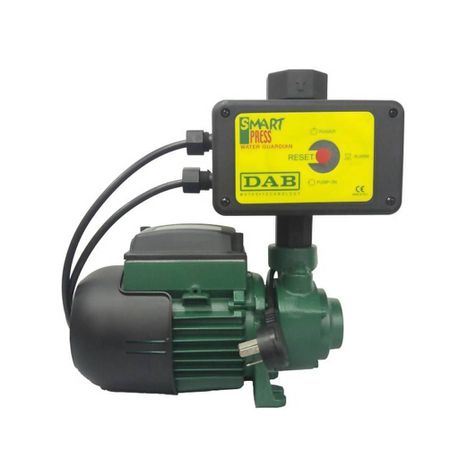

DAB Peripheral Pump - KPF Smart 0.37Kw

Peripheral centrifugal pump with compact dimensions.
Capable of generating high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for light industrial uses, such as feeding pressurized boilers (anti-condensation).
DAB Smart Press on/off the controller.
Dry run protection with integrated automatic reset.
Spring-loaded non-return valve.
32mm Discharge port.
Brass Union for ease of maintenance.
Peripheral Centrifugal pump.
Cast iron pump body with brass impeller.
25mm Suction port
Duty point 1000l/h @ 2 bar.
Plug and play.
Complete with SA 16 Amp plug.
No additional connections are required.
Thermal overload protection.
Operating range: From 5 to 50l/min with head up to 84m
P2 nominal: 0.37kW, 0.5hp
Current: 2.37A
Pumped liquid: Clean, free of solids & abrasives, non-viscous, nonaggressive, non-crystallised & chemically neutral, with properties similar to water
Liquid temperature range: from 0C to +35C
Maximum operating pressure: 6bar (600kPa)
Installation: Fixed, horizontal position
Motor protection class: IP44
Protection class at the terminal board: IP44
Insulation class: F
Dimensions [l x b x h]: 262 x 140 x 180mm
Weight: 5.3kg

What's in the box
1 x DAB KPF Smart Pump with Controller
