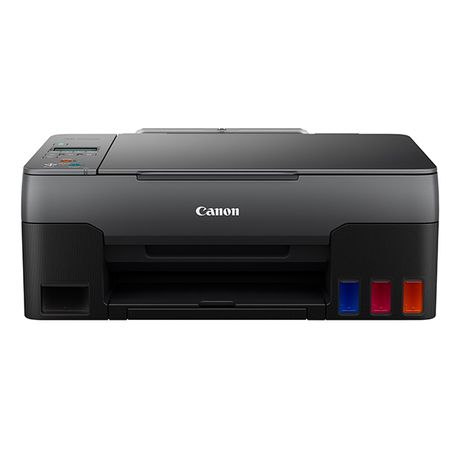

Canon Pixma MegaTank G2420 A4 3-in-1 A4 Printer

MULTIFUNCTIONAL PRINTING THAT’S EFFICIENT AND ECONOMICAL

Entry level, refillable ink tank multifunctional printer featuring usability improvements – ideal for home, student or office use.

*Endless low-cost printing
Keep on printing while keeping costs down thanks to huge yields of up to 12,000 pages (26% more in Economy mode3) from 2 black ink bottles, or 7,700 pages with a single set of colour bottles1

*High quality at speed
Count on quality at speed (9.1 ipm in black / 5 ipm in colour2), with pigment black ink ensuring pin-sharp text and dye colour inks delivering vivid colour photos

*Easy maintenance
Minimise downtime and meet every deadline with ease, with a user-replaceable maintenance cartridge that ensures dependable, day after day performance

Thoughtful design
*Refill ink tanks without fuss or effort using handy non-squeeze bottles with unique key type nozzles that ensure each ink bottle can only refill its equivalent tank

Get creative
*Experiment with diverse media types and sizes including magnetic photo paper, restickable photo paper, or even print your own banners up to 1.2 metres in length

TECHNICAL SPECIFICATION
GENERAL SPECIFICATIONS
Functions Print, Scan & Copy

PRINTER SPECIFICATIONS
Print Resolution Up to 4800 x 1200 dpi [1]
Print Technology 2 FINE Print Head (Black and Colour)
Refillable ink tank printer
Mono Print Speed approx. 9.1 ipm [2]
Colour Print Speed approx. 5.0 ipm [2]
Photo Print Speed Borderless 10x15cm : Approx. 45 seconds [3]
Borderless Printing Yes
A4, LTR, 4" x 6", 5" x 7", 7" x 10", 8" x 10",
Square (89 mm x 89 mm), Square(127 mm x 127 mm),
Card Size(91 mm x 55 mm) [4]
Two Sided Printing Manual operation

CARTRIDGES AND YIELDS
Standard Ink Cartridges GI-41
GI-41
GI-41
GI-41
Cartridge Yield (Plain paper) A4 colour documents printing [5]
Black: 6,000 pages (Economy mode 7,600 pages) [6]
Colour: 7,700 pages
* Estimated supplemental yield
Cartridge Yield (Photo print) 10x15cm colour photo printing [7]
Colour: 2,200 photos
* Estimated supplemental yield

PAPER SUPPORT
Paper Types Plain Paper
Photo Paper Pro Luster (LU-101),
Photo Paper Plus Glossy II (PP-201)
Matte Photo Paper (MP-101),
Glossy Photo Paper "Everyday Use" (GP-501)
High Resolution Paper (HR-101N),
Envelope,
Photo Paper Plus Semi-gloss (SG-201),
Cardstock
Restickable Photo Paper(RP-101)
Magnetic Photo Paper(MG-101)
Dark Fabric Iron on Transfers (DF-101),
Light Fabric Iron on Transfers (LF-101),
Double sided Matte Paper (MP-101D)
Maximum Paper Input Rear Tray: Max. 100 sheets (plain paper)
Paper Sizes A4, A5, A6, B5, LTR, LGL, Executive
(184.2 mm x 266.7 mm), Legal (215 mm x 345 mm),
4" x 6", 5" x 7", 7" x 10", 8" x 10", Envelopes DL, Envelopes COM10, Envelopes C5, Square
(89 mm x 89 mm), Square (127 mm x 127 mm),
Card Size(91 mm x 55 mm)

[Custom size] width 55 mm - 216 mm,
length 89 mm - 1200 mm
Paper Weight Rear Tray: Plain paper: 64 - 105 g/m²
Canon specialty paper: max paper weight :
approx. 275 g/m2 (Photo Paper Plus Glossy II PP-201)

SCANNER SPECIFICATIONS
Scanner Type CIS flatbed photo and document scanner
Scanner Resolution (Optical) 600 x 1200 dpi [8]
Line Scanning Speed Colour: 3.5 ms/line(300dpi)
Greyscale: 1.5 ms/line(300dpi)[9]
Scanning Depth (Input / Output) Colour: RGB each 16bit/8bit
Greyscale: 16 bit / 8 bit
Maximum Document Size A4/LTR

COPIER SPECIFICATIONS
Copy Speed sFCOT: Approx. 28 sec [10]
sESAT: Approx. 2.6 ipm [10]
Multiple Copy 99 copies (max.)

Copy Functions Document Copying, Photo Copying, Borderless copy, 2-on-1 and 4-on-1 copy, Frame erase copy,
ID copy
Copy Zoom 25 - 400% (in 1% increments)
Fit to page
A5 to A4, B5 to A4, A4 to A5 and A4 to B5
GENERAL
Display Full Dot LCD
Display Languages 32 Languages Selectable: Japanese,
English(mm & inch), German, French, Italian, Spanish, Dutch, Portuguese, Norwegian, Swedish, Danish, Finnish, Russian, Czech, Hungarian, Polish, Slovene, Turkish, Greek, Simplified Chinese, Traditional Chinese, Korean, Indonesian, Slovakian, Estonian, Latvian, Lithuanian, Ukrainian, Romanian, Bulgarian, Croatian, Vietnamese
Standard Interface Hi-Speed USB (USB B Port)
Printer Features Easy-PhotoPrint Editor Software [11]
OS Compatibility Windows 10, Windows 8.1, Windows 7 SP1
Operation can only be guaranteed on a PC with pre-installed Windows 7or later.
Printer driver, IJ Printer Assistant Tool and IJ Network Device Setup Utility are available with following OS.
Windows Server 2008 R2 SP1, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Chrome OS
Mac: OS X 10.12.6 ~ macOS 10.15 [12]
Minimum System Requirements Windows: 2.0GB or more
Mac: 1.0GB or more
Note: for bundled software installation. The necessary amount of hard disk space required.
Display: 1024 x 768 XGA
Software Included Printer Driver
IJ Printer Assistant Tool
Easy-PhotoPrint Editor (download)

PHYSICAL FEATURES
Weight approx. 6.4 kg
Dimensions (W x D x H) Approx. 445 x 330 x 167
Acoustic Noise Levels approx. 49.5dB(A) [13]
Operating Temperature 5-35°C
Operating Humidity 10-90%RH (no dew condensation)
Power Source AC 100-240V, 50/60Hz
Power Consumption Off: Approx. 0.2W
Standby (USB connection to PC): Approx. 0.6W
Standby (all ports connected): Approx. 0.6W
Time to enter Standby mode: 11minutes 2sec
Copying: Approx. 18W [14]
Typical Electricity Consumption 0.1 kWh [15]

Footnote:
[1] Ink droplets can be placed with a minimum pitch of 1/4800 inch
[2] A4 document print speed on plain paper is measured based on average of ESAT in Office Category Test of ISO/IEC 24734 standard.
[3] Photo print speed is based on default driver setting using ISO/JIS-SCID N2 standard on Canon Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
[4] Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers
[5] Page Yield is the estimated value based on Canon individual test method using the ISO/IEC 24712 chart and continuous printing simulation with the replacement after initial setup.
[6] The economy mode reduces the black ink consumption by lowering the density, 26% more pages than the standard mode can be printed
[7] Page Yield is the estimated value based on Canon individual test method using the ISO/IEC 29103 chart and continuous printing simulation with the replacement after initial setup.
[8] Optical resolution is a measure of maximum hardware sampling resolution, based on ISO 14473 standard.
[9] The fastest speed in Hi-Speed USB on Windows PC. Transfer time to computer is not included.
[10] Colour document copy speed is measured based on average of sFCOT and sESAT in Performance Test of ISO/IEC 29183 standard. Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc. and does not take into account warming up time.

Footnote:
[11] The Easy-PhotoPrint Editor software requires an Internet connection and is compatible with the following operating systems; Microsoft Windows 10
(64-bit/32-bit), Microsoft Windows 8.1 (64-bit/32-bit), Microsoft Windows 7 SP1
(64-bit/32-bit), macOS High Sierra v10.13, macOS Sierra v10.12, Mac OS X El Capitan v10.11 and Mac OS X El Capitan v10.10.5. Minimum Windows and macOS/Mac OS X requirements are: 2GB of RAM and a monitor with 1024x768 resolution.
[12] Some functions may not be available with these Operating Systems. Please refer to the manual or website for details.
[13] Plain Paper(A4, B/W). Acoustic Noise is measured based on ISO7779 standard.
[14] Copy: When copying ISO/JIS-SCID N2 (printed by inkjet printer) on A4 size plain paper using default settings.
[15] Typical Electricity Consumption (TEC) value: TEC value was calculated assuming the unit will be constantly switched among operational mode, sleep mode, and power-off mode for 5 days, and that it will be either in sleep or power-off mode for the remaining 2 days within the same week. The TEC value of this product is calculated by Canon on their own accord using TEC measurement procedure regulated in International ENERGY STAR Program.

Standard disclaimers
• All specifications subject to change without notice.
• Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
• Ink yield may vary depending on texts/photos printed, applications software used, print mode and type of paper used. For yield information see
www.canon-europe.com/ink/yield

• All brand and product names are trademarks of their respective companies.
• Microsoft, Windows and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

What's in the box
Canon PIXMA G2420
5 high yield ink bottles (2x Black and 1x C/M/Y)
Print Heads
Power cord
Setup CD-ROM
Manuals and other documents
