Biostar Intel B560MX Chipset, Socket LGA 1200, Micro-ATX Motherboard

B560MX-E PRO
CPU-Chipset
Intel B560 chipset
With the Intel® B560 chipset and the 10th/11th generation Intel® Core™ i9/ i7/i5/ i3 processors and Intel® Pentium® processors, you will immediately be at
the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel B560 chipset provides you with the
power and performance you need.

Audio
HD Audio
Provides high quality sound with minimal loss of audio fidelity.

Hi-Fi Ground
Hi-Fi Ground ( Golden Line ) is noise-blocking multi-layer PCB design to isolates analog audio signals from digital sources. Unique PCB layout is ideal for
exceptional clarity and high fidelity sound.

Smart Ear
Smart EAR is a windows-based audio utility which allows you to easily adjust system volume. With its user-friendly GUI, you can also increase or decrease
impedance setting (Low/High Gain) to optimize your headphone performance.
You can easily enjoy high-quality and awesome sound.

Video
HDMI 4K2K
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed
content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.

DVI
DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets
data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself.

DX12
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine,
and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern
GPU hardware.

Speed
Intel GbE LAN
Unlike ordinary LAN solution, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice
for performance seekers.

PCIe M.2
PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s.

SATAIII 6Gbps
SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media.
With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II.

Dual DDR4
The primary advantages of DDR4 over DDR3, include higher module density, lower voltage requirements, coupled with higher data transfer rate.

PCIe 4.0
PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is
doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.

PCIe M.2 4.0
PCIe M.2 4.0 is the latest storage interface, it delivers the highest bandwidth and lower latency. It is 2 times faster compared with PCIe M.2 3.0.

USB 3.2 Gen1 Type-A
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of
data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.

Digital PWN
Digital PWM controller is with dual-output multiphase that faster transient performance and accurately regulated frequency control. It can be enabled to
greatly increase system efficiency.

Durable
Super Durable Solid Caps
The best quality solid state capacitors with ultra low ESR design, the Super Durable Solid Caps doubles the lifespan.

Iron Bar Protection
Biostar’s exclusive Iron Bar Protection can reinforce PCI-E x16 slots to handle heavier graphics cards, prevent bending, and extend longevity of the slot,
making the new-gen BIOSTAR motherboards much more robust.

Moistureproof PCB
The PCB will be oxidizing easily by damp or absorbed moisture, and ionic migration or CAF (Conductive Anodic Filament) will be generated. Moistureproof
PCB meets high density and high reliability requirements for moisture proof.

Protection
Super LAN Surge Protection
Super LAN Surge Protection, providing LAN port with more advanced antistatic protection capabilities by adding an integrated chip to strengthen electrical
stability and prevent damage from lightning strikes and electrical surges. SLSP (Super LAN Surge Protection) series motherboard upgrades the existing system
protection standards with maximum 4X protection comparing to other board makers.

ESD Protection
ESD (Electrostatic Discharge) is the major factor to destroy the PC by electrical overstress (EOS) condition. ESD occurred by PC users when touch any devices
connect to a PC, which may result in damage to the motherboard or parts. ESD protection is designed to protect the motherboard and equipment from damage
by EOS.

OC / OV / OH Protection
OC / OV / OH Protection design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the
overvoltage supply to protect your system.

DIY
UEFI BIOS
Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical
user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.

BIO-Flasher
BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with
only a few clicks without preparing an additional floppy disk or other complicated flash utility.

CPU OPT
BIOSTAR offers one more fan header which is called CPU OPT. Users can use it to connect any kind of water coolers for a liquid cooling system. Keep your
computer stable and enjoy your machine at the utmost potential.

Debug LED
Debug LED helps you identify any issues going with your board or hardware.
When error occurs, the corresponding LED lights will inform you on the status of your board or hardware to shorten the test time effectively.
*The specification and pictures are subject to change without notice and the package contents may differ by area or your mother

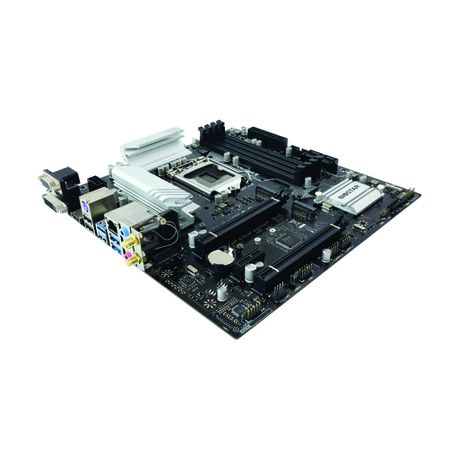

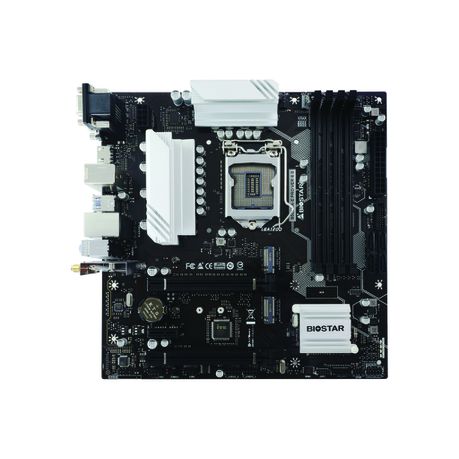

B560MX-E PRO Motherboard
• Supports 10th/ 11th Generation Intel Core™ Processor
• Intel B560 single chip architecture
• Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) up to 128 GB Memory
• Supports PCIe 4.0
• Supports PCIe M.2 4.0 (64Gb/s)
• Supports Intel Optane Technology
• Supports USB 3.2 Gen1
• Supports WiFi 6 module (No WiFi 6 card included)
• Supports HDMI 1.4 4K resolution

B560MX-E PRO Specifcation
Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/
Intel Celeron processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.

Memory
Supports Dual Channel DDR4
4000+(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2666/2400/2133
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
* Please refer to www.biostar.com.tw for Memory support list.

Supports DX12
Supports HDCP

Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s) : Supports AHCI & Intel Rapid Storage Technology
1 x M.2 (M Key) Socket (M2PCIEG464G11THONLY):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) - NVMe/ AHCI SSD
Support 11th Gen processor only
1 x M.2 (M Key) Socket (M2PCIEG332GSATARST1):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD
Supports Intel Optane Technology
* M.2 (M Key) Socket (M2PCIEG464G11THONLY) support 11th Gen Rocket Lake-S CPU only.

LAN
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio ALC897
7.1 Channels, High Definition Audio, Hi-Fi(Front)

USB
6 x USB 3.2(Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)

1 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot (x16 mode)
1 x PCIe 3.0 x16 Slot (x4 mode)

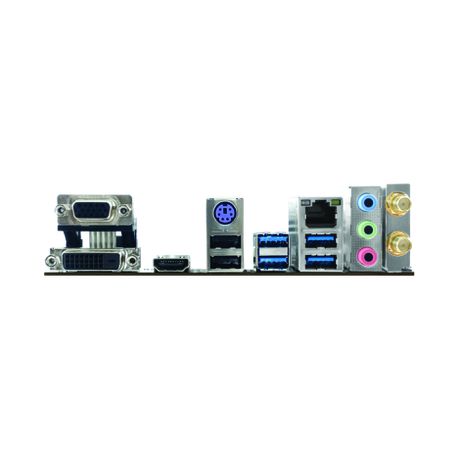

Rear I/O 2 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x VGA Port
1 x DVI-D Port
1 x HDMI 1.4 Port
4 x USB 3.2 (Gen1) port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack

Internal I/O 4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E key) Wi-Fi card is not provided

CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring

Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
Supports Windows 10(64bit) / 11(64bit)

BIOS-Flasher
BullGuard

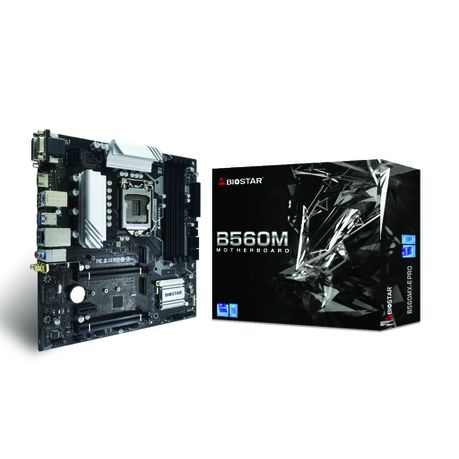

What's in the box
1 x Biostar Motherboard
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi antenna accessories
