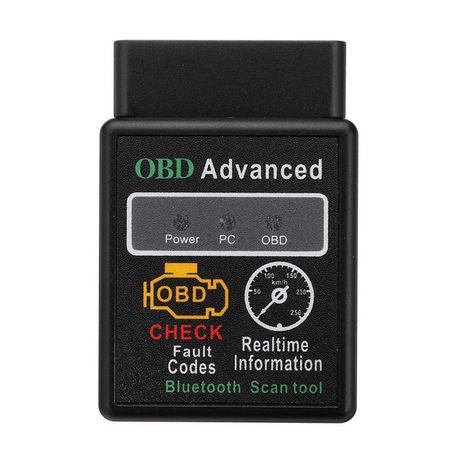

ATT ELM327 OBD 2 CAN BUS Diagnostic Scanner Tool Bluetooth

Reads diagnostic trouble codes, both generic and manufacturer-specific, and displays their meaning (over 3000 generic code definitions in the database).



Displays current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Description:

Used to read and diagnose trouble codes, clear trouble codes.

LED Indicator

Analyse data in real time

Important Note:

This device is not compatible with IOS Devices.

This device is not compatible with Diesel engines as well.

This device only works with 12Volt petrol engine cars from 2005 and upward.



Some Known cars that the scanners is not compatible are:

VW Polos

Fortuner

Hilux

Range rover

Bakkies and Suv’s etc.



Support PC / Android phone

For Android user: Please download app “Torque Lite” which is free from Android market. And install the app. If you want “Torque Pro” then you will have to purchase it from playstore.



For Windows user: Please use the EasyOBD app from provided software cd.



It can work on most of the cars but not all.



FAQ:



How do I pair CTech OBDII Advanced Bluetooth Car Diagnostic Scan Tool to my Android Smart phone or Tablet?



1. Make sure your car is OBD2 compatible.

2. Locate your car’s OBD II diagnostic port and plug in your scanner. It’s usually found under the driver’s side dashboard, under the steering wheel.

3. Turn on your vehicle engine, this provides power to your dash lights, radio and also the OBD II diagnostic port.

4. From your Android Smartphone or tablet, go to your Bluetooth. Turn on Bluetooth, scan for the nearby devices and pair your phone with the scanner. Password is 1234.



Bluetooth Pairing Issues:

1. Unpair any existing Bluetooth devices such as, smartwatch, headset, car Bluetooth or speakers from your phone.

2. Make sure the Torque App is not running in the background. Close the Torque app before pairing the device to your android smart phone or tablet.

3. After pairing to OBDII from your android smart phone or tablet, then open the torque app.

4. If the password 1234 doesn’t work, try 12345 or 0000

5. Turn off Bluetooth, turn it back on and rescan for the device





Torque Android Application Connection

1. Open your Torque OBD-II app.

2. Tap on the setting icon which is on the left bottom of the screen.

3. Tap on the Settings again.

4. Tap on OBD2 Adapter Settings.

5. Tap on Choose Bluetooth Device.

6. Tap on OBDII, to pair with the Bluetooth scanner.

7. Go back to the App’s main menu to enjoy its features.

What's in the box
1 x ELM327 Advanced Bluetooth Scanner Only
