ASUS RT-AX92U Tri-band WiFi 6 Gaming Router, PS5 Compatible

ASUS AX6100 Tri-Band WiFi 6 Gaming Router

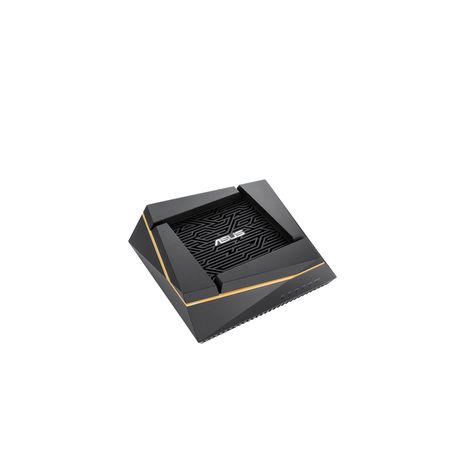

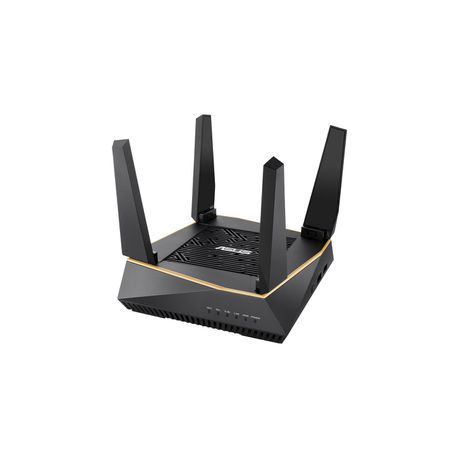

ASUS RT-AX92U

• Next-Gen Wi-Fi6 Technology
• Flexible Wi-Fi for connected devices
• Powerful Whole-home Wi-Fi System, the Way You Want
• Commercial-grade network security for family

AX6100 Tri-Band WiFi 6 (802.11ax) Gaming Router, prioritize game traffic by Gear Accelerator, support AiMesh Whole Home Mesh WiFi, Lifetime Free AiProtection Pro Internet Security, wtfast GPN, Mobile Game Boost

Specifications
Network Standard
- IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax

Product Segment
- AX6100 ultimate AX performance : 400 Mbps+ 867 Mbps+ 4804 Mbps

Coverage
- Very large homes

Data Rate
- 802.11a : 6,9,12,18,24,36,48,54 Mbps
- 802.11b : 1, 2, 5.5, 11 Mbps
- 802.11g : 6,9,12,18,24,36,48,54 Mbps
- 802.11n : up to 300 Mbps
- 802.11n 256QAM : up to 400 Mbps
- 802.11ac (5GHZ-1)?up to 867 Mbps
- 802.11ac (5GHZ-2)?up to 4333 Mbps
- 802.11ax (5GHZ-2)?up to 4804 Mbps

Antenna
- Internal antenna x 2
- External antenna x 4

Transmit/Receive
- 2.4 GHz 2 x 2
- 5 GHz-1 2 x 2
- 5 GHz-2 4 x 4

Memory
- 256 MB Flash
- 512 MB RAM

Wi-Fi Technology
- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 20/40/80/160 MHz bandwidth

Operating Frequency
- 2.4G Hz, 5 GHz-1, 5 GHz-2

Encryption
- WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support

Management
- UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log

VPN Support
- IPSec Pass-Through
- PPTP Pass-Through
- L2TP Pass-Through
- PPTP server
- OpenVPN server
- PPTP client
- L2TP client
- OpenVPN client

WAN Connection Type
- Internet connection type: Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

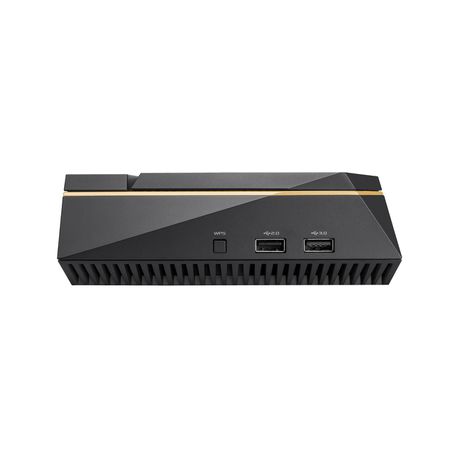

Ports
- RJ45 for Gigabits BaseT for WAN x 1
- RJ45 for Gigabits BaseT for LAN x 4
- USB 2.0 x 1
- USB 3.1 Gen 1 x 1

Features
- Router app
- MU-MIMO
- Traffic Analyzer
- Adaptive QoS
- WTFast Gamers Private Network
- AiProtection Pro
- Parental Control
Guest Network:
- VPN server: IPSec Pass-Through, PPTP Pass-Through, PPTP Server, OpenVPN Server
- VPN client: PPTP client, L2TP client, OpenVPN client
- Enhanced media server (AiPlayer app compatible)

• AiCloud personal cloud service
• 3G/4G data sharing
  Printer Server
• Multifunctional printer support (Windows only)
• LPR protocol support
  Download Master
• Support bt, nzb, http, ed2k
• Support encryption, DHT, PEX and magnet link
• Upload and download bandwidth control
• Download scheduling
  AiDisk file server
• Samba and FTP server with account management
• IPTV support
• Roaming Assist
• OFDMA

Button
- WPS Button, Reset Button, Power Switch

LED Indicator
- Wi-Fi x 3
- Power x 1
- LAN x 1
- WAN x 1

Power Supply
- AC Input : 110V~240V(50~60Hz)
- DC Output : 19 V with max. 1.75 A current

OS Support
- Windows 10 64-bit
- Windows 8.1
- Windows 8
- Windows 7
- Mac OS
- Linux

Operation mode
- Wireless router mode
- Range extender mode
- Access point mode
- Media bridge mode

Warranty
- 3 Years

Package Contents
1 x RT-AX92U
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card

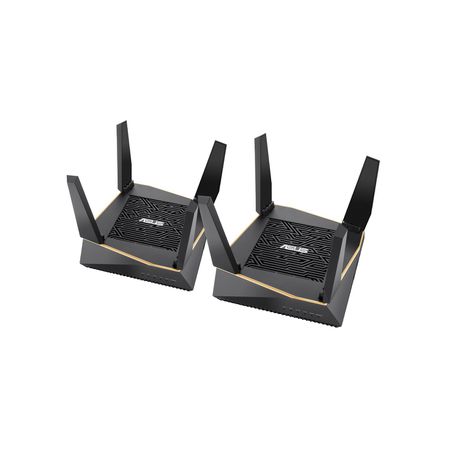

What's in the box
2 x RT-AX92U Routers
1 x RJ-45 Cable
1 x Power adapter
1 x Quick Start Guide
1 x Warranty Card
