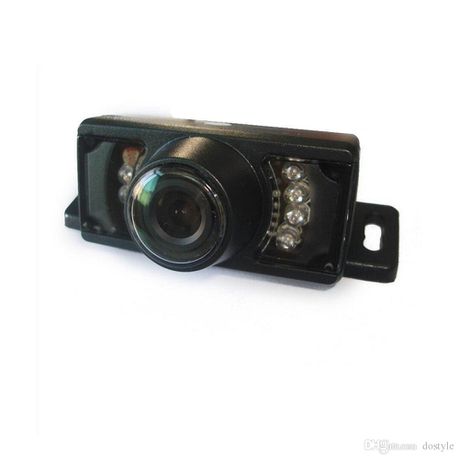

170 degree Wide Angle Car Rear View Camera

Features:
- This is a 170° HD reversing universal camera with a 170° wide-angle view.
- It provides security and a high-quality image. Video displays on the car DVD player, monitor, GPS, parking sensor, etc.

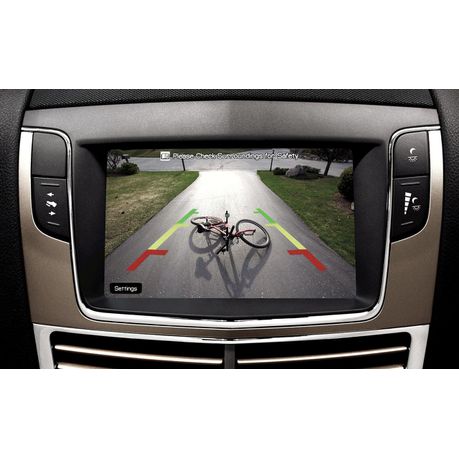

- When reversing, there is a pair of guidelines consisting of converging red, yellow, and green stripes superimposed over the image
- Using CCD digital fill image sensor designed
- 30 to +60 temperature range of application
- With reverse reference line
- The factory after the high-pressure water immersion test and 12 hours on the electrical aging test
- Installed in the rear handle and the license plate lights, equipped with self-tapping screws
- Video cable connection monitor, power cable connection car tail light power supply, reversing,
- Reversing monitoring system automatically start working, you can clearly see the car after the situation

Specifications:
- HD 170° wide-angle view
- Rotates by 180°
- Resolution: 628x582 (NTSC)
- Image area: 3.584 mm x 2.688 mm
- TV system: PAL
- Scanning system: 2:1 interlace
- S / N ratio: more than 48dB
- Support CCD Color sensor
- Video output: 1.0VP-P,75OHM
- Automatic Backlight Compensation BLC and AGC
- Min Illumination? 0.01 Lux/F=1.2(0 Lux with IR on)
- Waterproof design: IP68
- Work condition: -200 to 750 RH95% max
- Power supply: DC 12V
- Length of the video cable: 600cm
- Output line: power supply, signal line, ground
- Video Output: Composite Video Cable (75 ohms)
- Operating temperature: -20 ? ~ +80 ?, RH95%
- Storage temperature: -40 ? ~ +100 ?, Rh95%

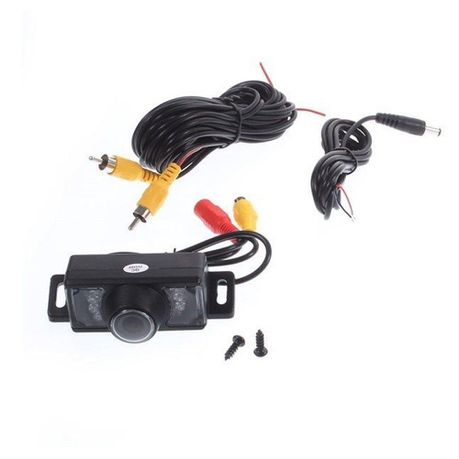

What's in the box
1 x Car Backup 4 LED Rear View Reverse Parking Camera
