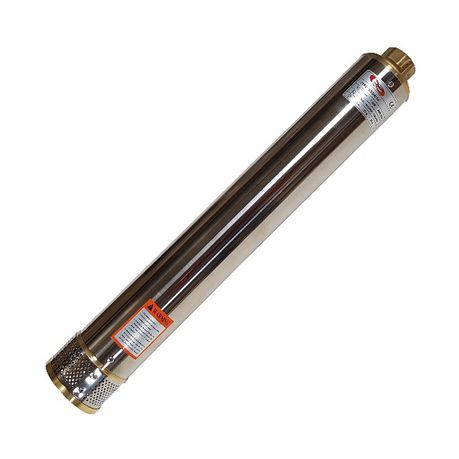

1.1 Kw, 4, Pump, Wet End 2/21 - 220V, Hurricane

The Hurricane 4SD4/14 borehole submersible pump end requires a 1.1Kw submersible motor to drive it and is capable of delivering up to 20L/min at a depth of 96m.

It can be connected to either a 220V single phase 1.1KW borehole submersible motor or a 380V three phase 1.1KW borehole submersible motor.

Operating Conditions
Maximum fluid temperature: up to 35°C
Maximum sand content: 0.25%
Minimum borehole diameter: 4' (10.16cm)

Single Phase : 220V - 240V 1.1KW 1.5HP / 50Hz or
Three Phase : 380V - 415V 1.1KW 1.5HP / 50Hz
Equip with either a standard (manual) or an automatic control box 1.1KW 1.5HP (water level sensors)

Specifications:
Speed: 2850RPM
Power: 1.1KW
Power: 1.5HP
Outlet: 32mm
Pump Diameter: 100mm
Pump Length: 630mm
Pump Weight: 5.2KG

Output: 20L/min 60L/min 100L/min
Depth: 96m 77m 32m

What's in the box
1 x box
